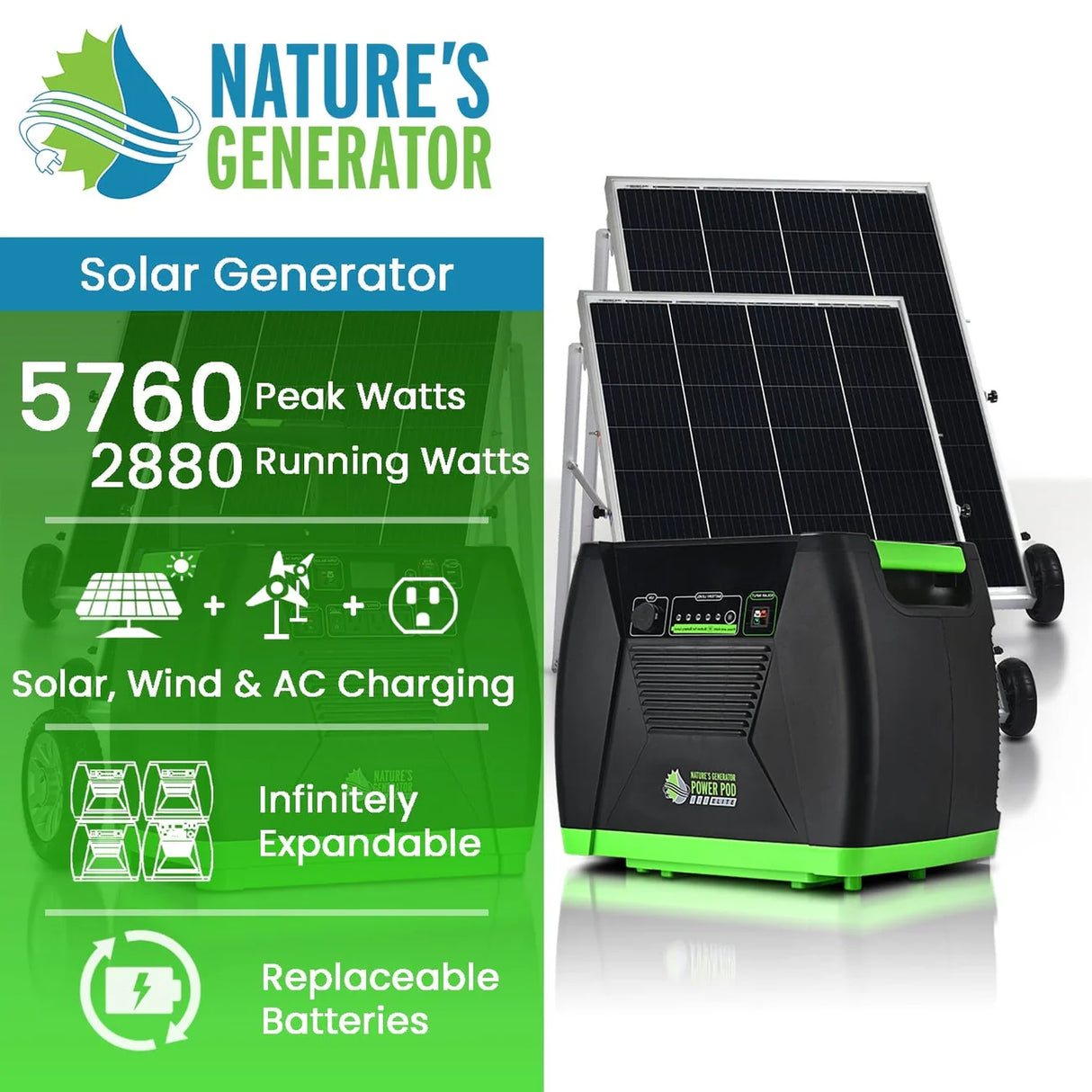

Nature's Generator Elite - Platinum System

Nature's Generator Elite - Platinum System 3600W

Product Features

• Versatile Power Solution: The Nature's Generator Elite Platinum System is a 3600W generator that is perfect for home battery backup, RV use, camping, and off-grid setups.
• Expandable Design: Expand the system's capacity with additional battery units and solar panels to meet your changing energy needs.
• Home Integration Ready: Offers transfer switch or power inlet box options for seamless power backup during home outages.
• Eco-Friendly Operation: Harnesses solar and wind power, providing a sustainable and renewable energy solution with minimal noise.

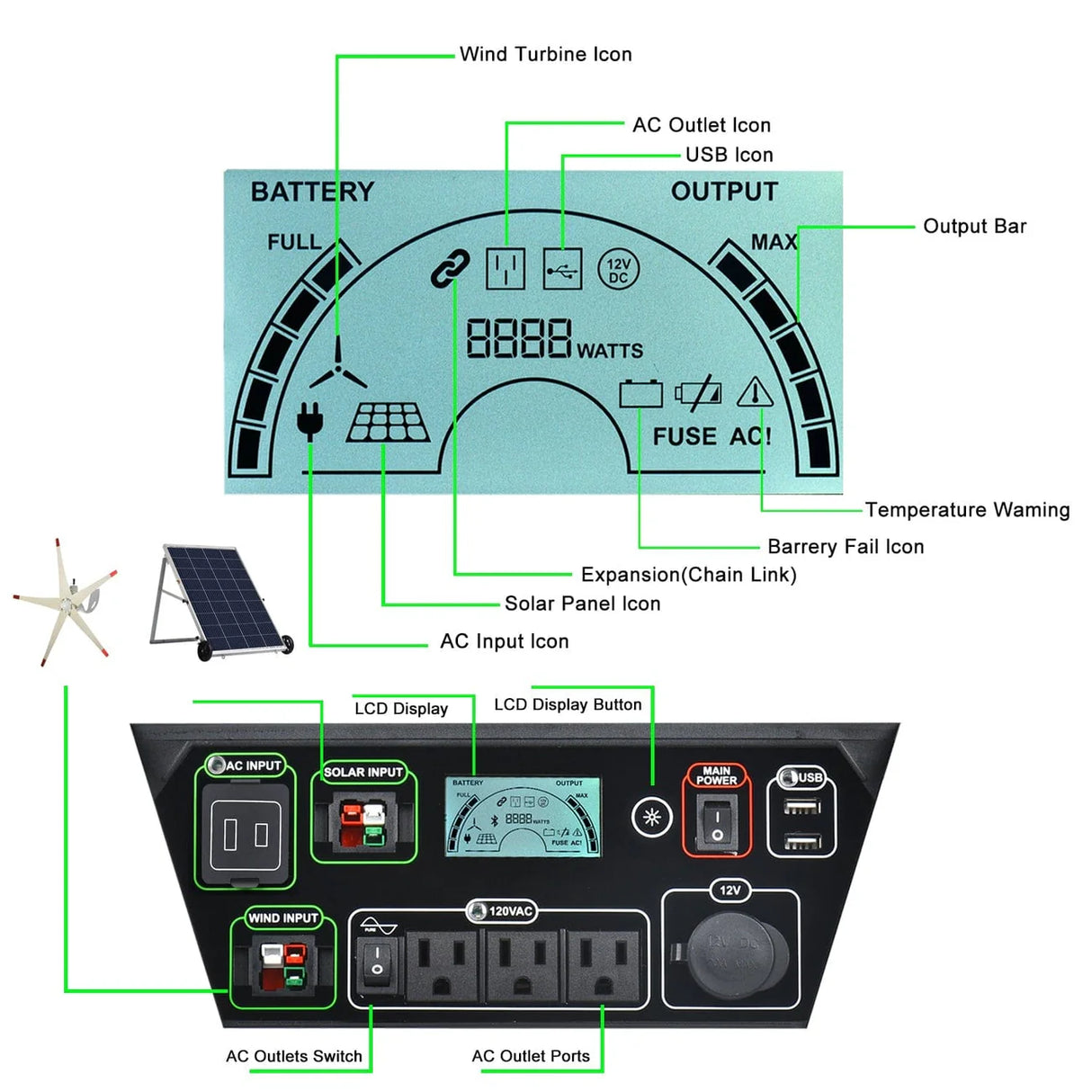

• User-Friendly Display: The LED display shows battery levels, wattage usage, and remaining power time, making it easy to monitor system performance in real time.

Key Features of the Elite Platinum System

• AC Power:
  • 3 × 120V AC outlets deliver up to 3600W peak and 2880W continuous pure sine wave power for safe and reliable energy.
• Solar Recharging:

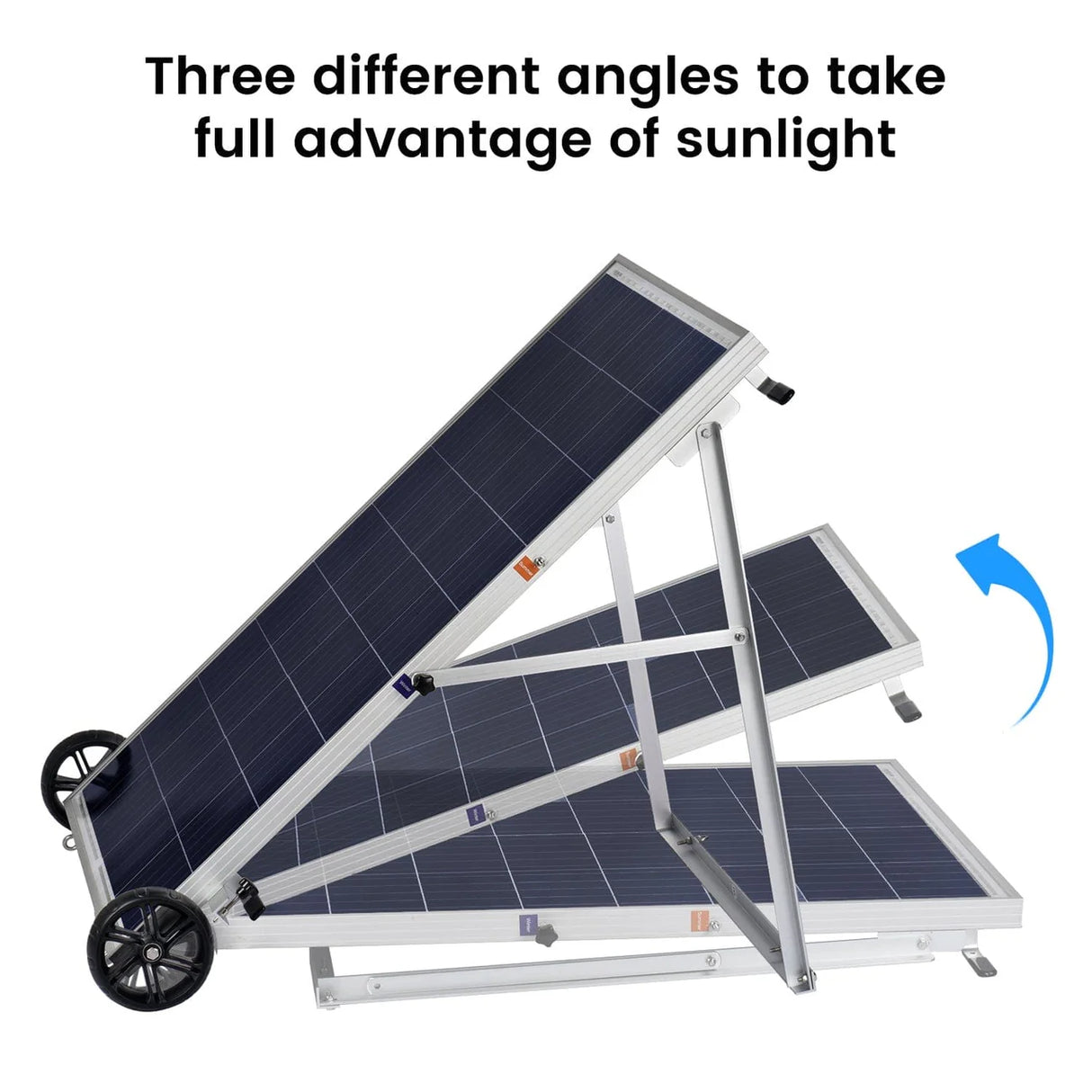

  • Comes with a 300W solar charge controller and 100W monocrystalline solar panel for clean and green recharging (some assembly required).
• Wind Recharging:
  • Compatible with a 300W wind generator (sold separately).
• Battery Management:
  • 190W built-in quick charge battery charger for efficient recharging.

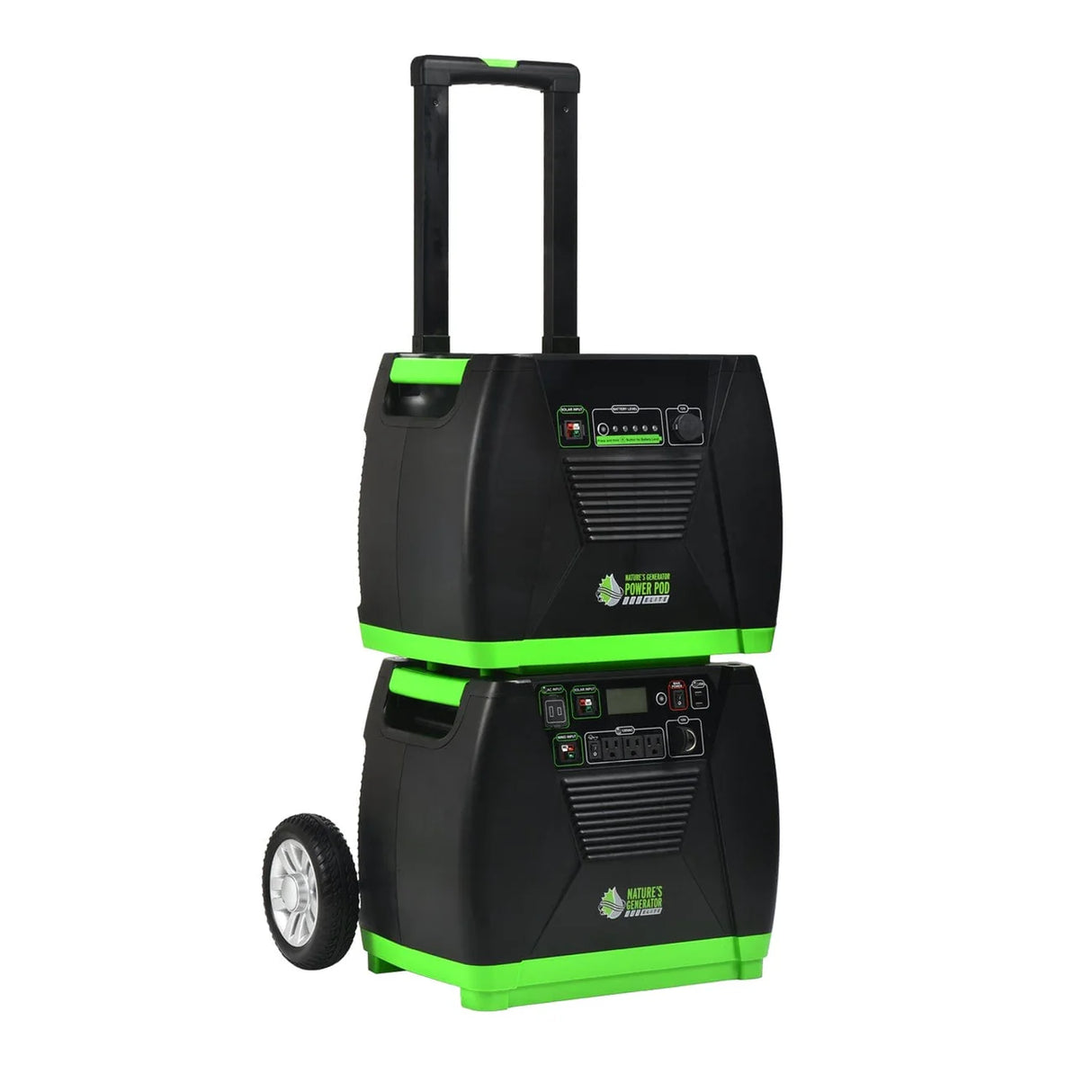

  • 350A expansion port for adding an unlimited number of Nature's Generator Power Pods.
• USB and DC Ports:
  • 2 USB ports (3A/15W combined).
  • 12V DC port (240W max).
• UPS Function: Includes uninterrupted power supply (UPS) functionality to provide backup during power outages.

Charging Options

1. AC Cord (Included): Recharge in 10-15 hours.
2. Solar Panels (Sold Separately): Recharge in 10-15 hours (depending on sunlight).
3. Wind Turbine (Sold Separately): Recharge time varies based on wind conditions.

Powering Devices

Nature's Generator Elite System (1200Wh)

• 32" LED TV: 20+ hours
• CPAP Machine: 13+ hours
• Smartphone: 100+ recharges
• Mini Fridge: 20-30 hours
• Refrigerator: 13-20 hours

Nature's Generator Elite + Power Pod (2400Wh)

• 32" LED TV: 40+ hours
• CPAP Machine: 25+ hours
• Smartphone: 200+ recharges
• Mini Fridge: 40-60 hours
• Refrigerator: 26-40 hours

Run times are approximate and depend on device wattage and usage. Using the Power Panel will extend run times.

Technical Specifications

Nature's Generator Elite

• Inverter:
  • Output Power: 3600W peak, 2880W continuous
  • Waveform: Pure Sine Wave
  • Output Voltage: 120V
  • Frequency: 60Hz
• Battery:
  • Type: AGM Sealed Lead Acid
  • Capacity: 12V 100Ah (1200Wh)
  • Recharge every 4 months if not in use.

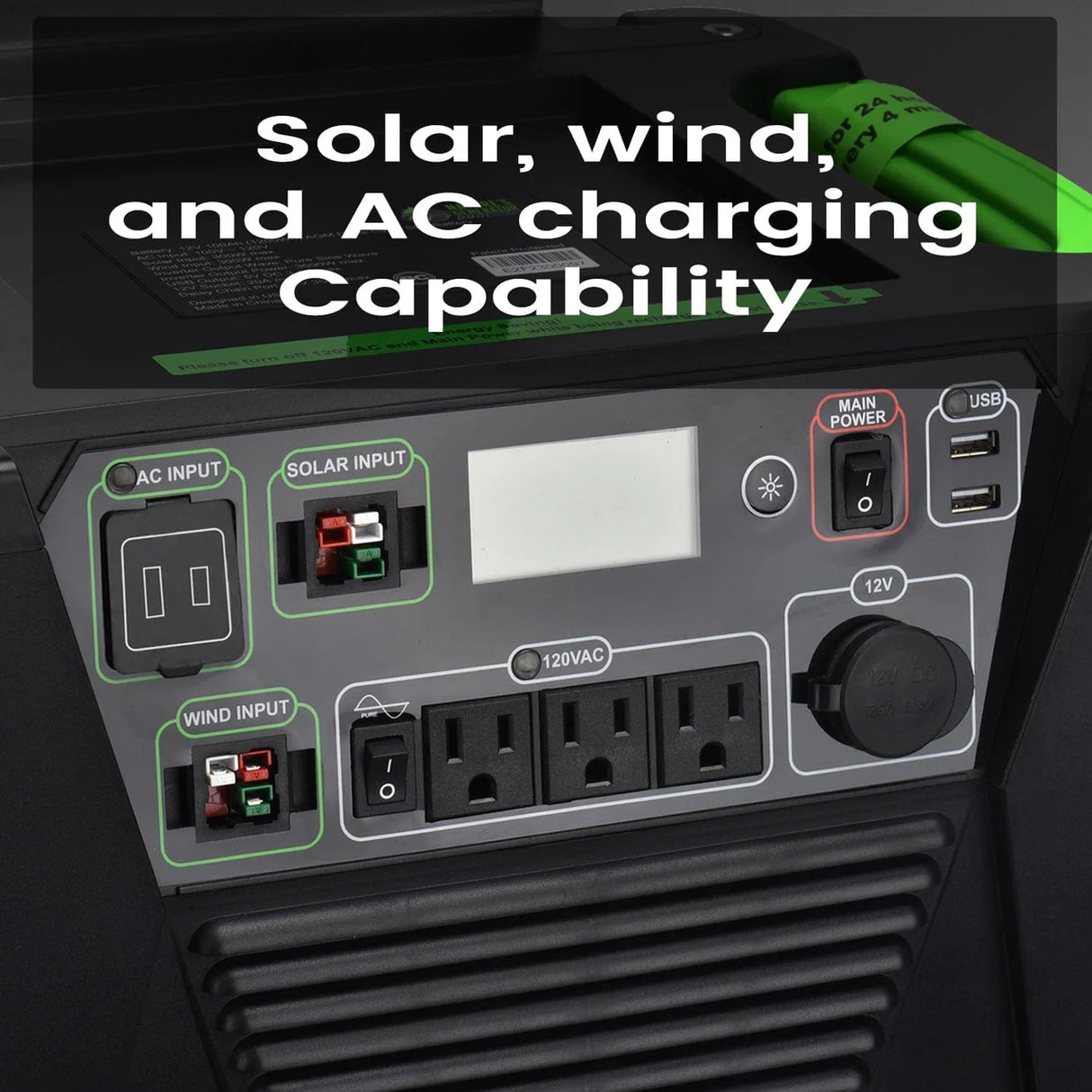

• Ports:
  • 3 × 120V AC outlets
  • 2 × USB ports (3A/15W combined)
  • 1 × 12V DC port (240W max)
  • 1 × Solar input (300W max)
  • 1 × Wind input (300W max)

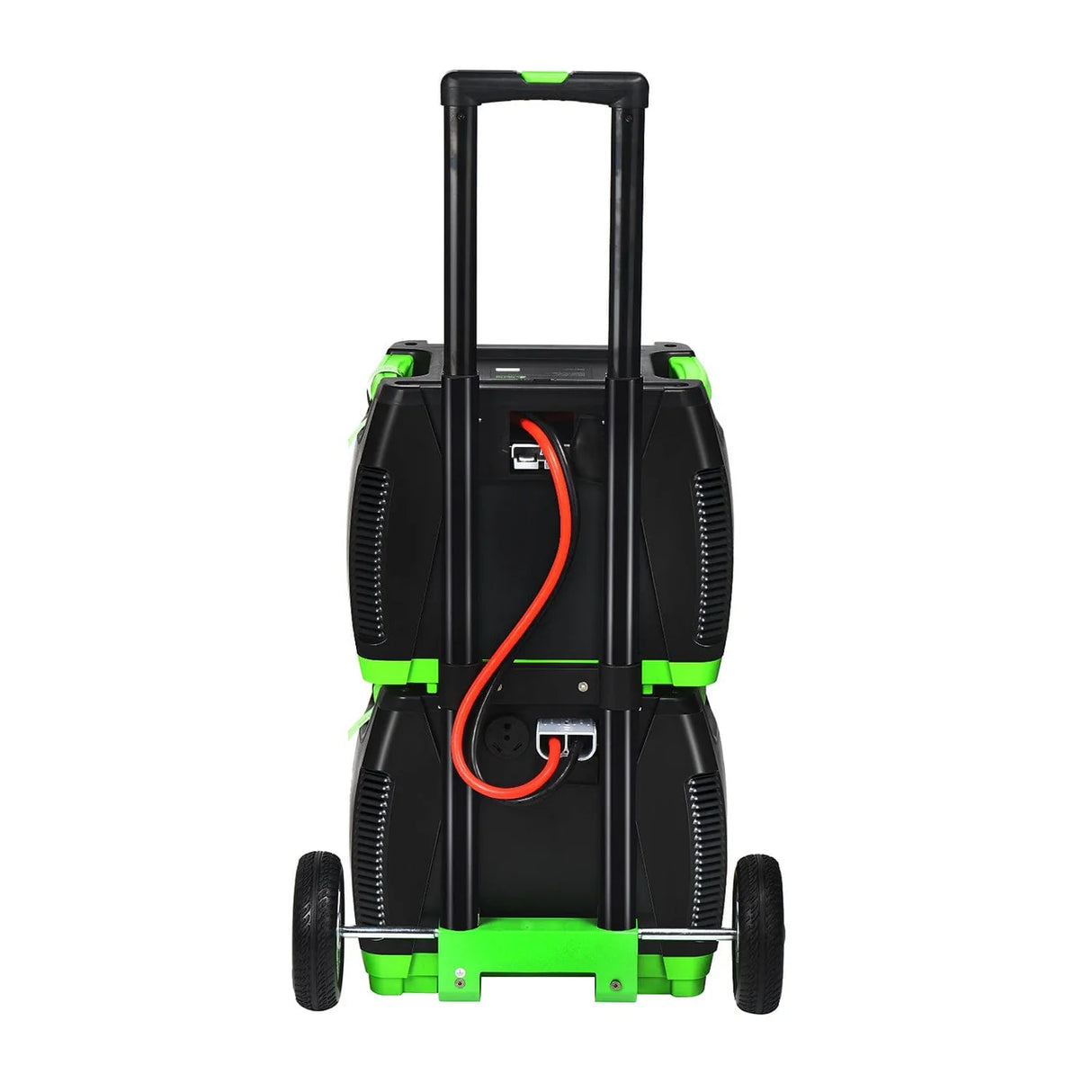

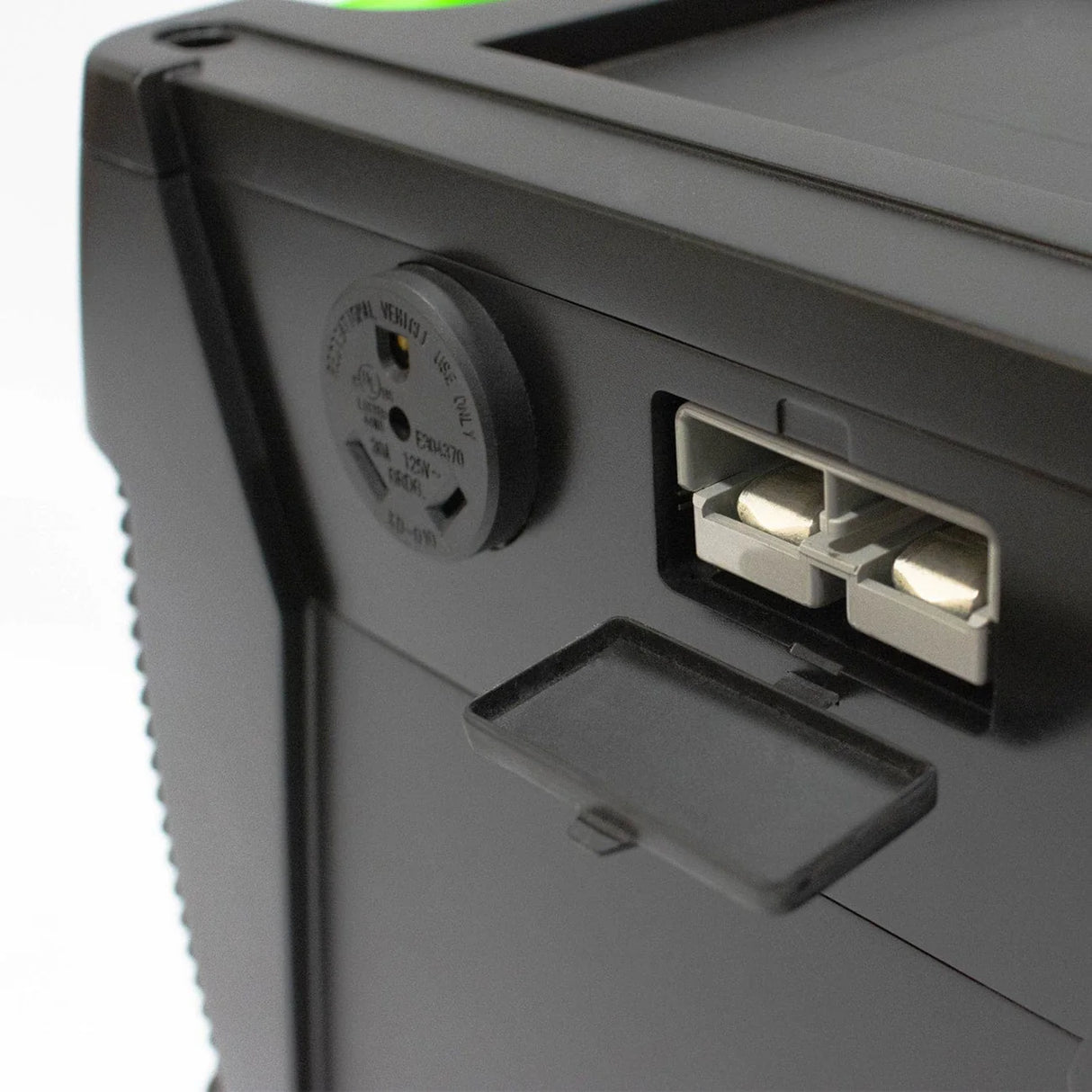

  • 1 × Expansion port (350A fuse)
• Dimensions & Weight:
  • With cart: 23 × 17 × 22 in (57 × 42 × 55 cm)
  • Without cart: 18 × 12 × 15 in (47 × 30 × 38 cm)
  • Weight: 120 lbs
• Operating Temp: 32-104°F (0-40°C)
• Storage Temp: 23-111°F (-5-45°C)
• Warranty: 12 months limited

What's in the Box

Nature's Generator Elite

• 1 × 3600W Nature's Generator
• 1 × Heavy Duty Cart (assembly required)
• 1 × Power Cord (stored in back compartment)
• 1 × User Guide
• Manual & Quick Start Guide

Nature's Generator Elite Power Pod

• 1 × Nature's Generator Power Pod Elite
• 1 × User Guide
• Hardware box
• Manual & Quick Start Guide

The Power Pod includes a compartment for fuse connector storage or for other small items.

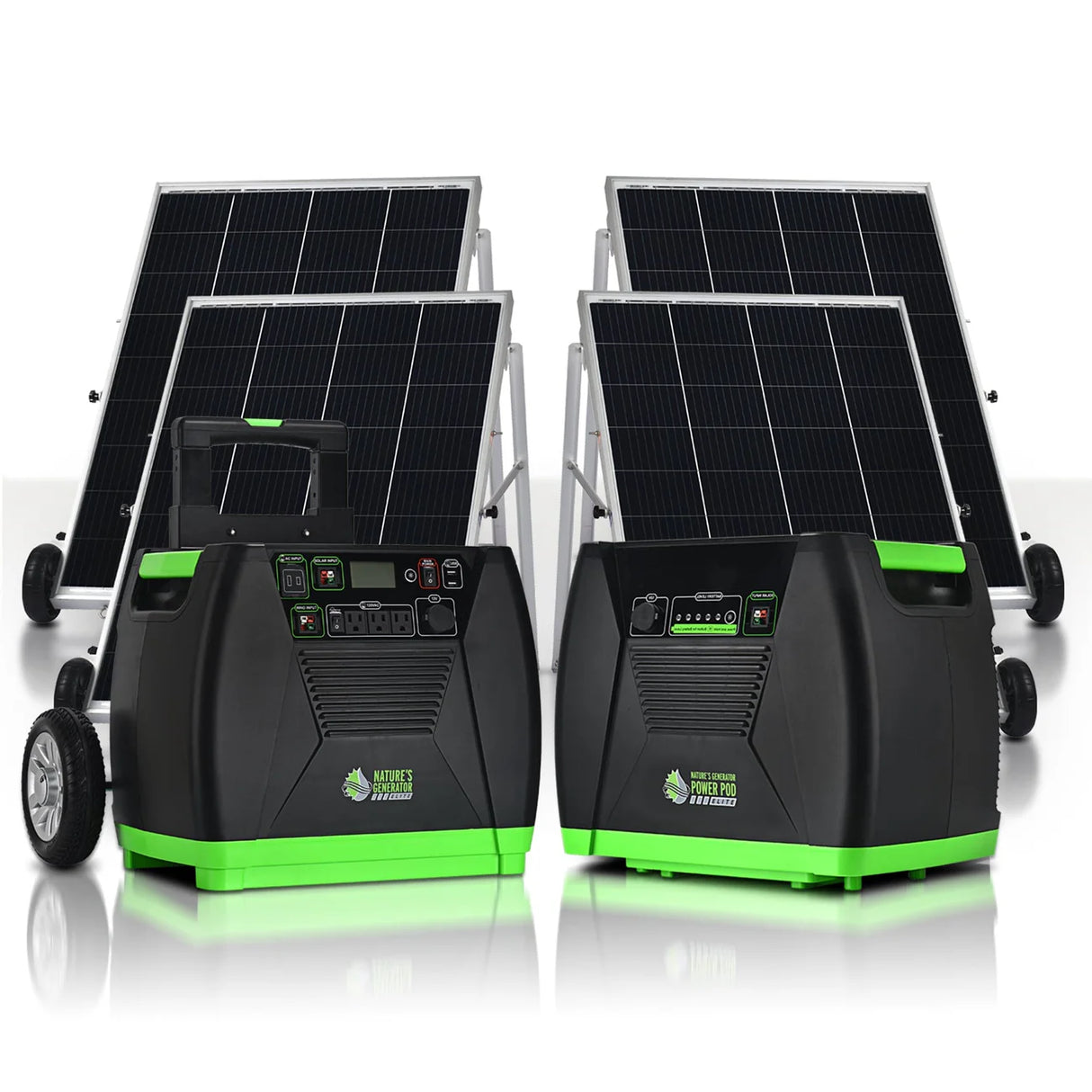

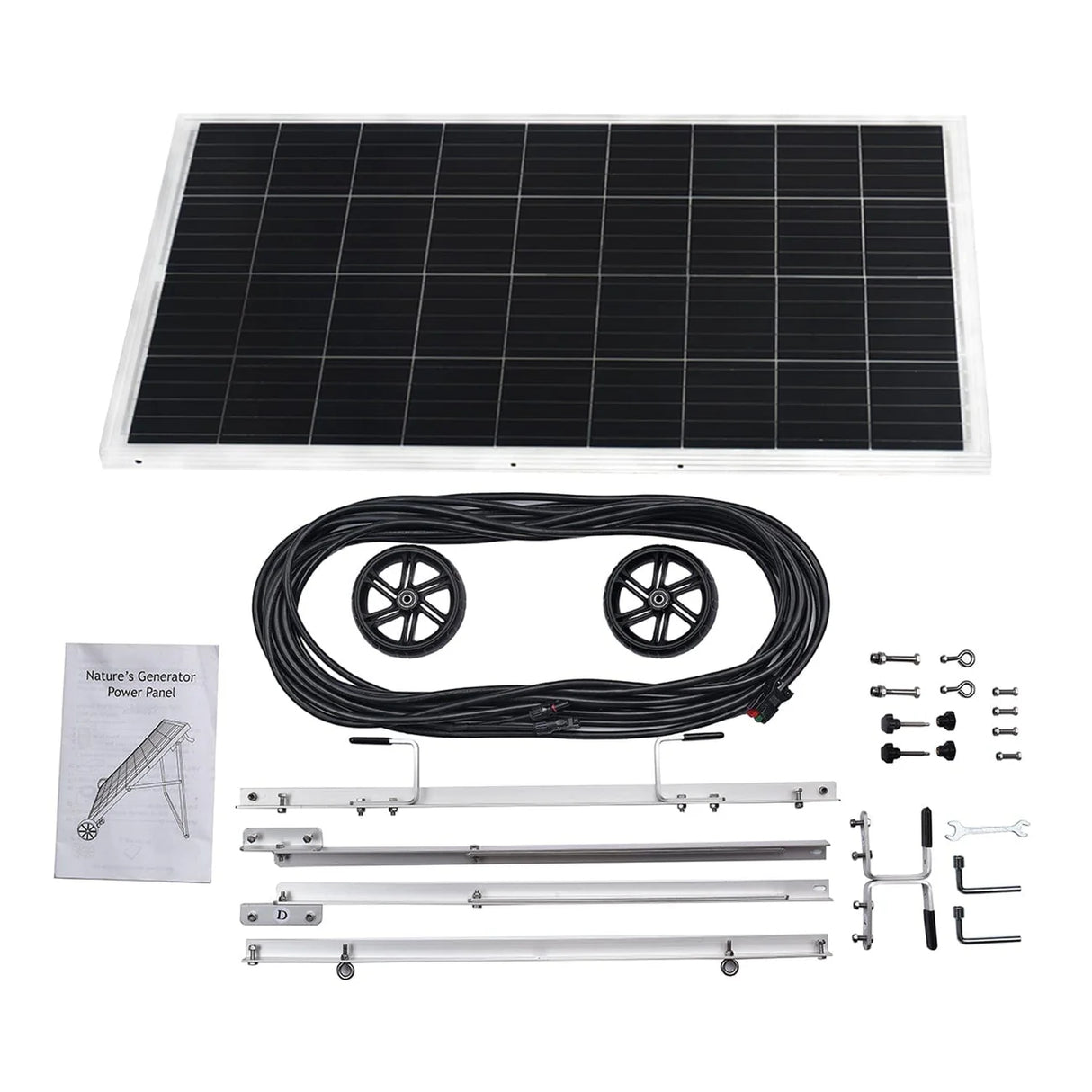

Nature's Generator Power Panel

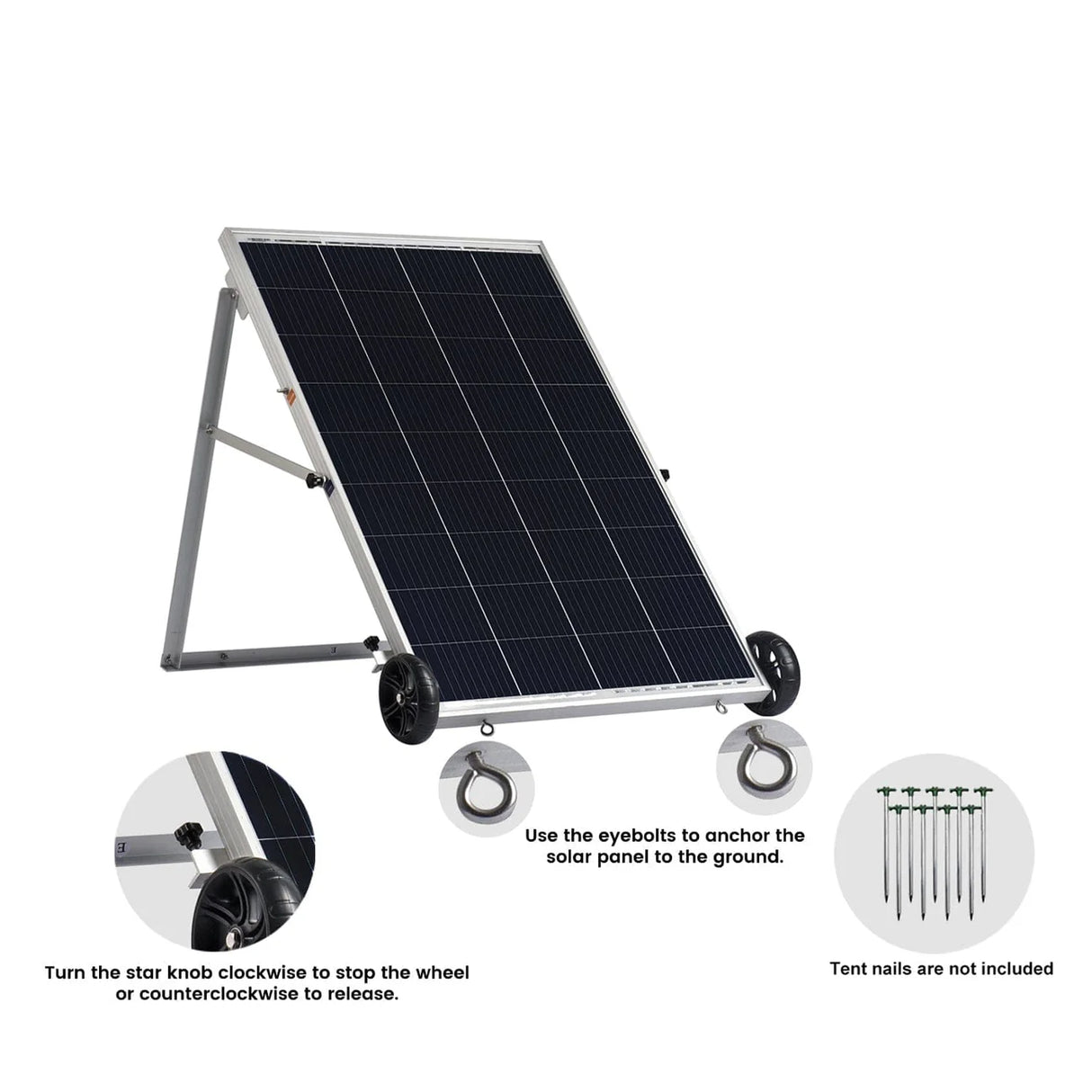

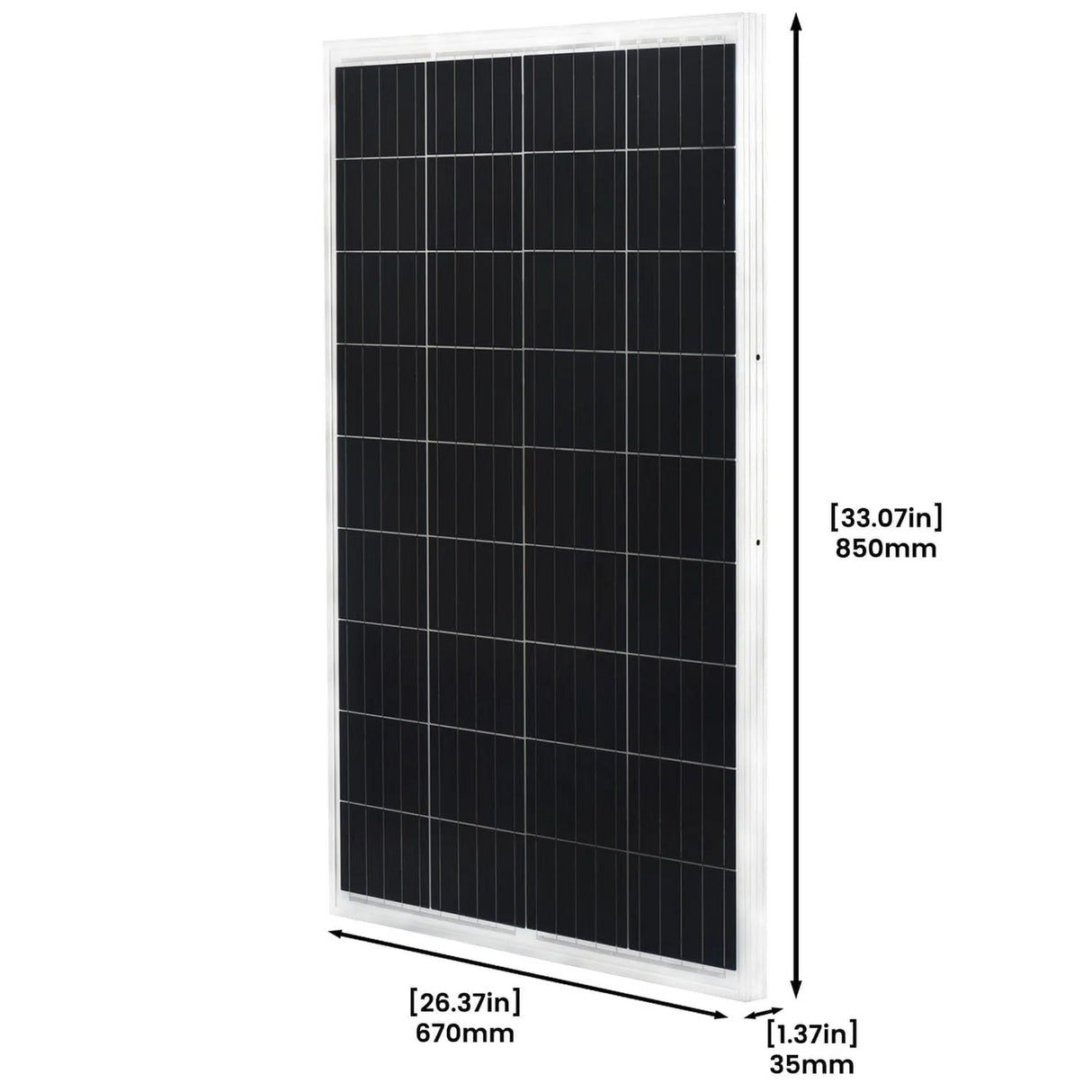

• 4 × 100W Monocrystalline Solar Panels
• 4 × Accessory Boxes (with stands and wheels)
• 1 × User Guide
• 2 × UL-approved 12-gauge 50 ft panel cables
• 2 × MC4 branch connectors
• Manual & Quick Start Guide
• Power Panel Start Guide
• Power Panel Assembly Guide

The Nature's Generator Elite Platinum System is a high-capacity, eco-friendly power solution ideal for home backup, RV, camping, and off-grid use!
