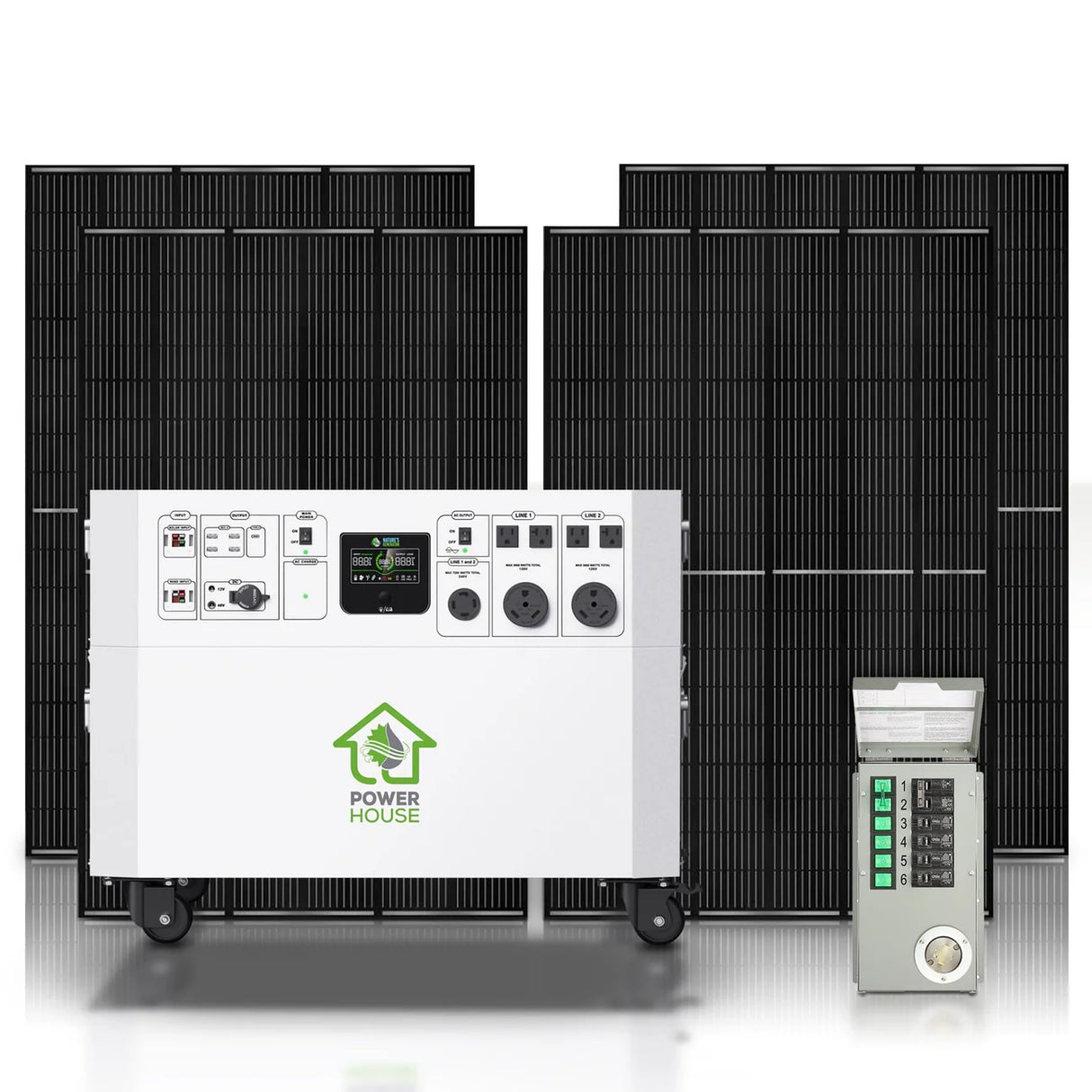

Nature's Generator Powerhouse Gold Plus PE System

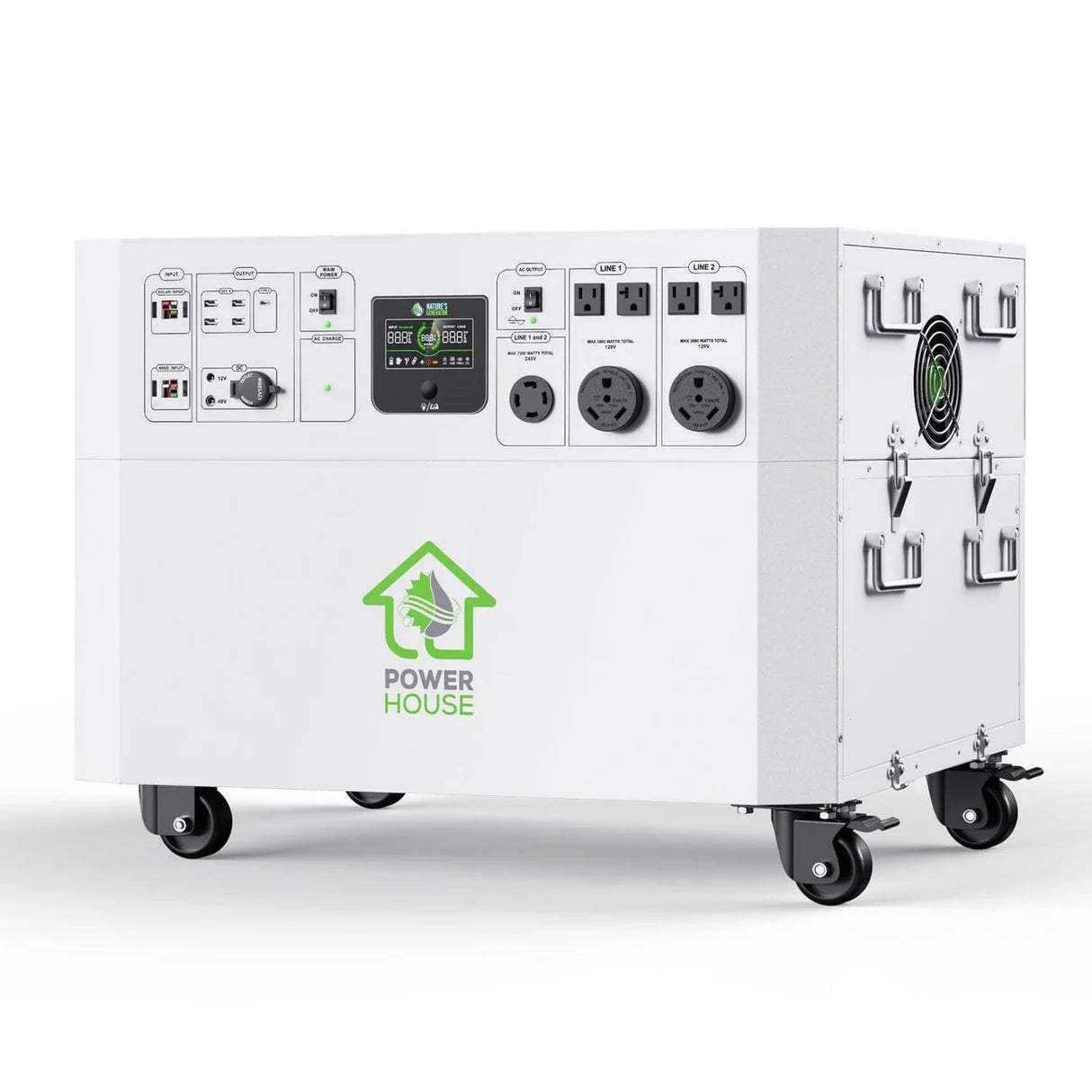

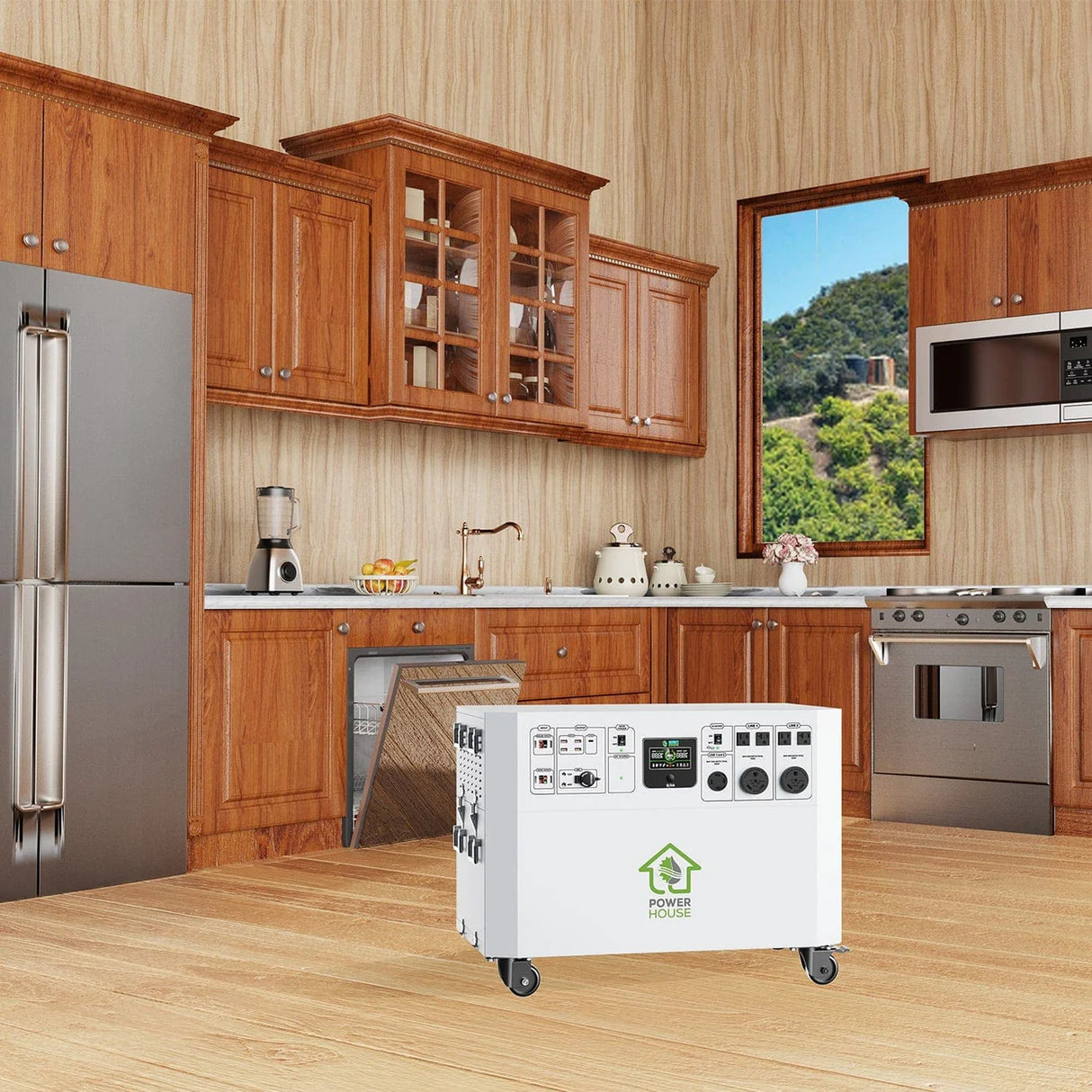

Get To Know The Nature's Generator Powerhouse

Nature's Generator Powerhouse can single-handedly address all your home power requirements thanks to its split phase 240V/7200W or single-phase 120V/7200W (combined) pure sine wave inverter!

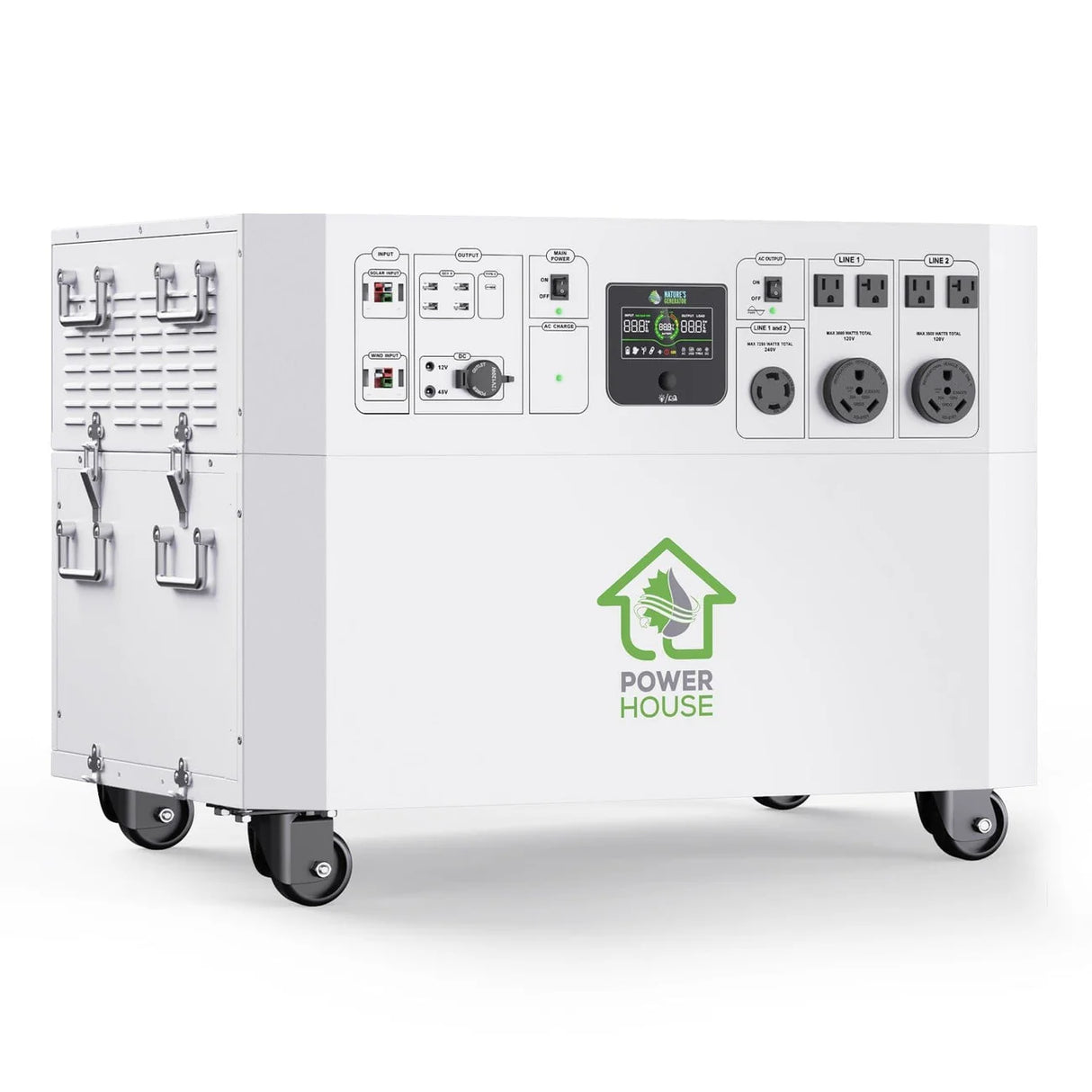

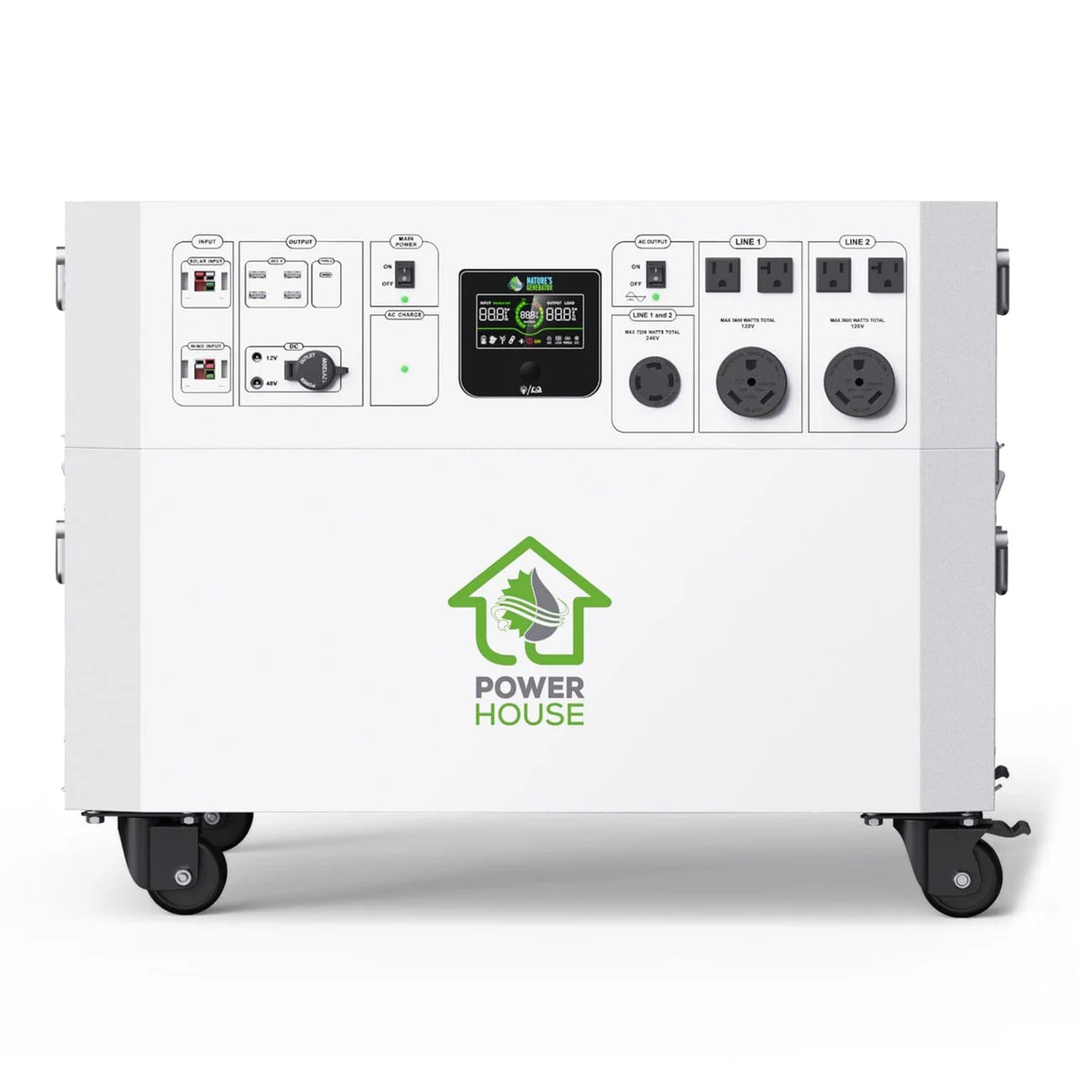

Powerhouse Front Panel Plugs

240V 7200W Pure Sine Wave

Nature's Generator understands the importance of 240V in every home. The Powerhouse supports devices like water pumps, air conditioners, heaters, and more, ensuring reliable power whenever needed.

120V 3600W Pure Sine Wave Line 1

Power Line 1 offers a 120V, 3600W pure sine wave independent from Line 2, powering sensitive devices such as refrigerators, freezers, garage door openers, and computers.

120V 3600W Pure Sine Wave Line 2

If you’ve maxed out Line 1’s capacity, Line 2 provides an additional 3600W, delivering power to more devices.

Your All-in-One Expandable Home Power Ecosystem

Nature's Generator Powerhouse can expand with solar panels, wind turbines, power pods, transfer switches, and security camera systems. Customize your eco-system to fit your needs!

Powerhouse System Configurations

AC Output:

• 2 x 3600W 120 Volt

• 1 x 7200W 240 Volt

DC Output:

• 4 x USB Type A

• 1 x USB Type C

• Up to 4 x 12 Volt Output

• Up to 4 x 48 Volt Output

Capacity:

• 4800 Wh (expandable with Power Pods to no limit!)

Charging Input:

• 2000W Solar Input (expandable to 8000W)

• 1000W Wind Input (expandable to 4000W)

• 1300W AC Wall Outlet Input

Nature's Generator Powerhouse Power Capabilities

Nature's Generator Powerhouse (4800Wh Capacity)

• LED TV (60W): 80+ Hours

• Blender (400W): 12+ Hours

• 220V Well Pump (2HP): 3+ Hours

• Smartphone: 400+ Recharges

• Refrigerator: 50-80 Hours

Powerhouse + Power Pod (9600Wh Capacity)

• LED TV (60W): 160+ Hours

• Blender (400W): 24+ Hours

• 220V Well Pump (2HP): 6+ Hours

• Smartphone: 800+ Recharges

• Refrigerator: 100-160 Hours

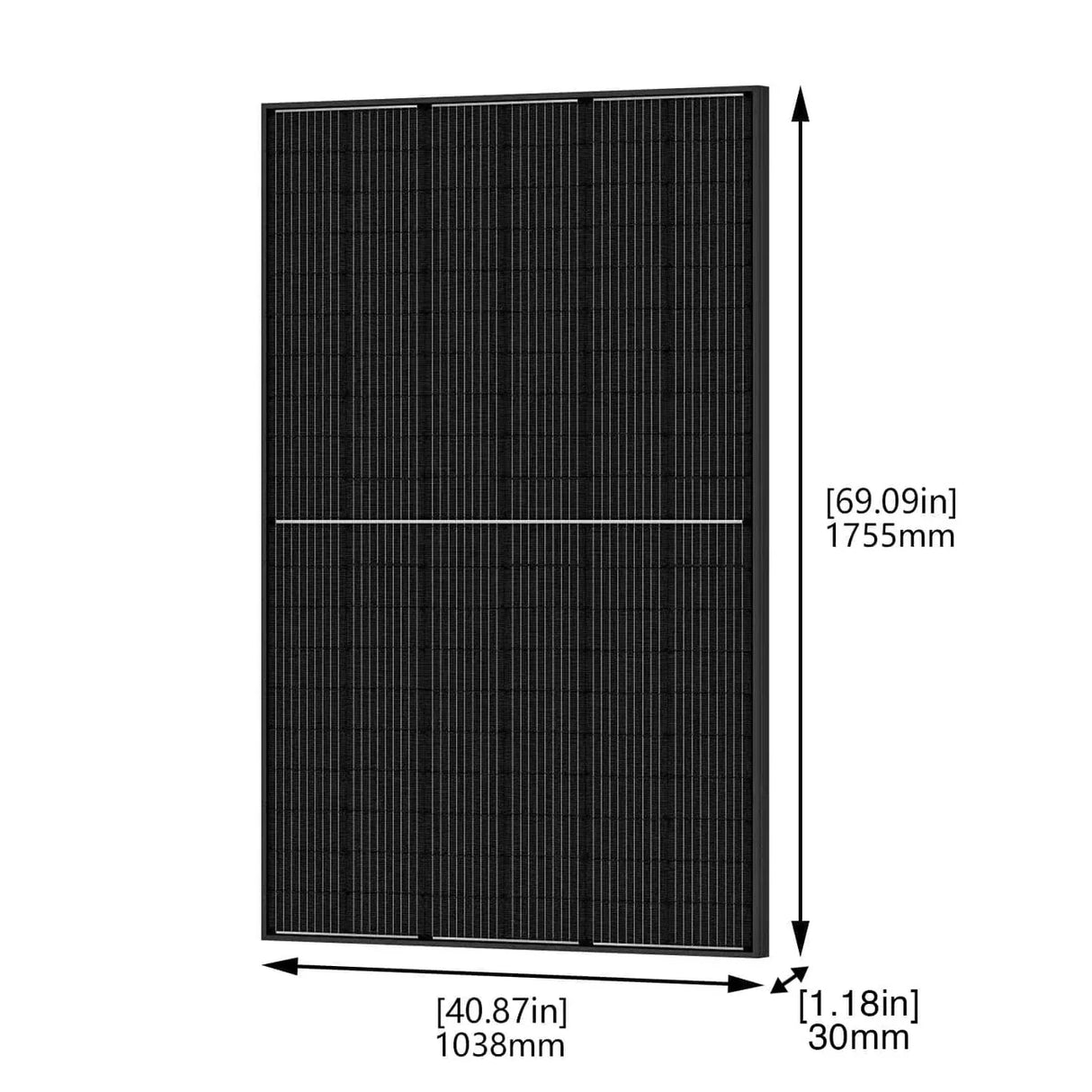

Nature's Generator Powerhouse Power Panel

Design:

• Luxurious all-black frame with advanced multi-busbar solar cell technology for improved efficiency and aesthetics.

Efficiency:

• 410W Panels with up to 20.38% module conversion efficiency

• Performs exceptionally well in low-light conditions.

Durability:

• Certified for wind loads (2400 Pascal), snow loads (5400 Pascal), and high salt mist/ammonia resistance.

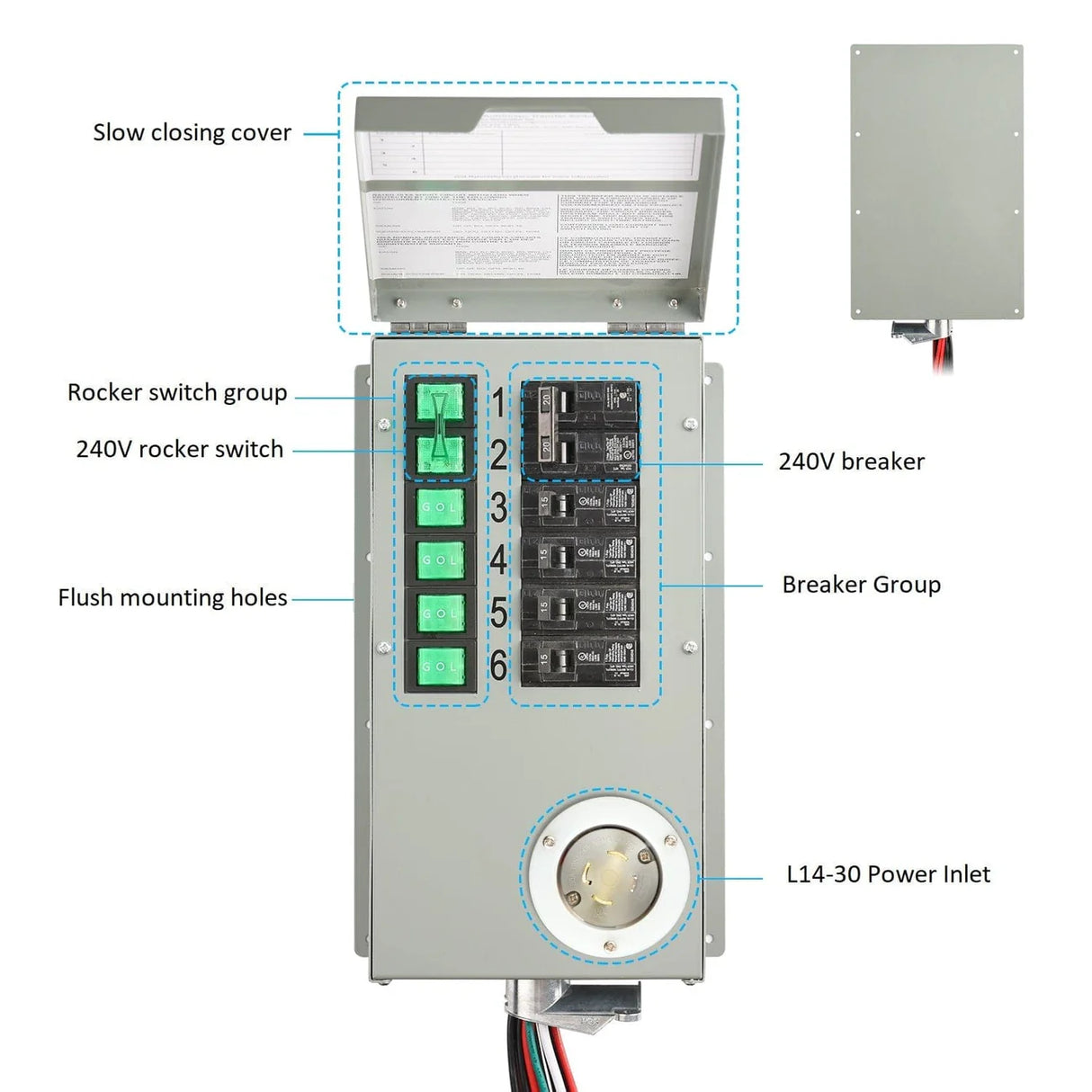

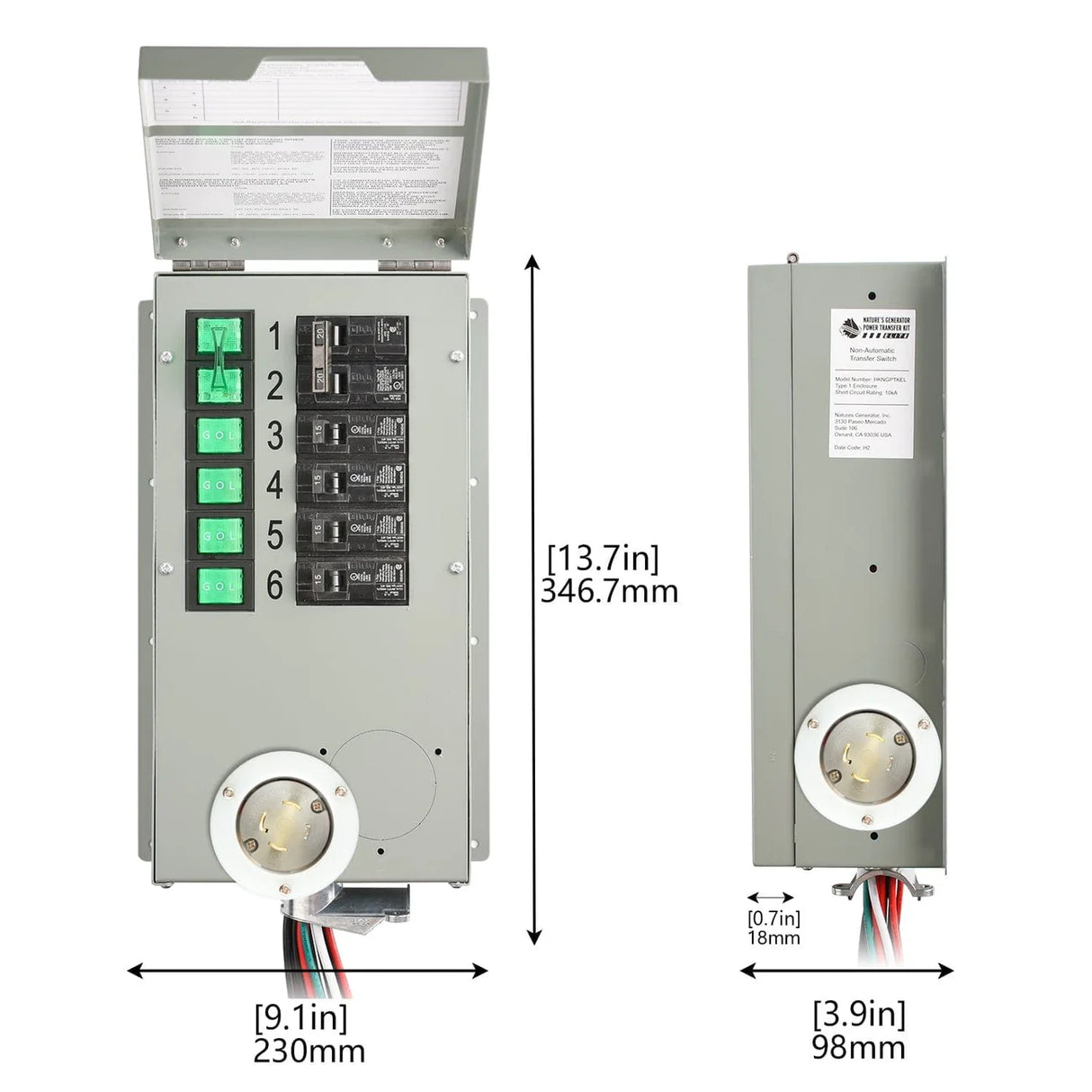

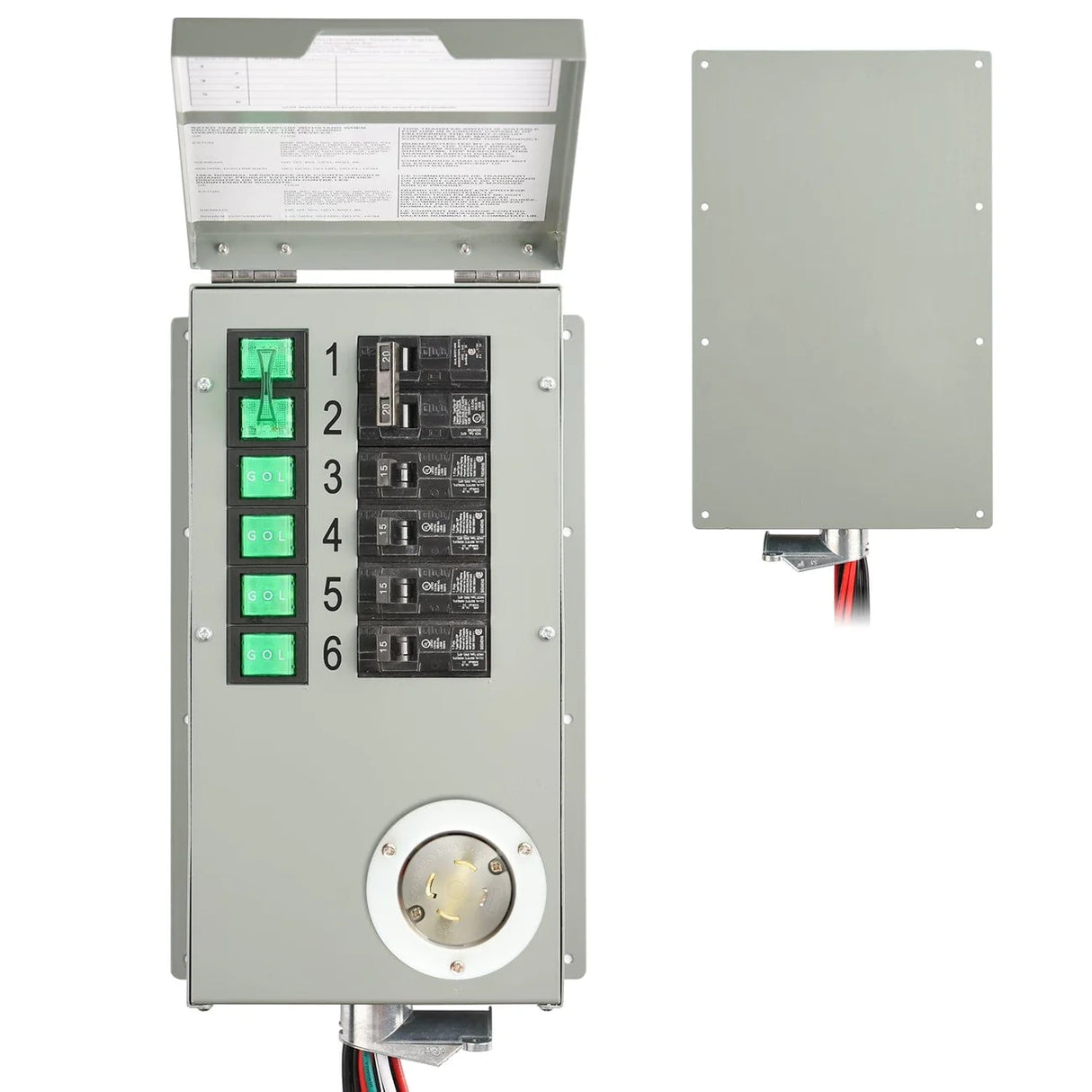

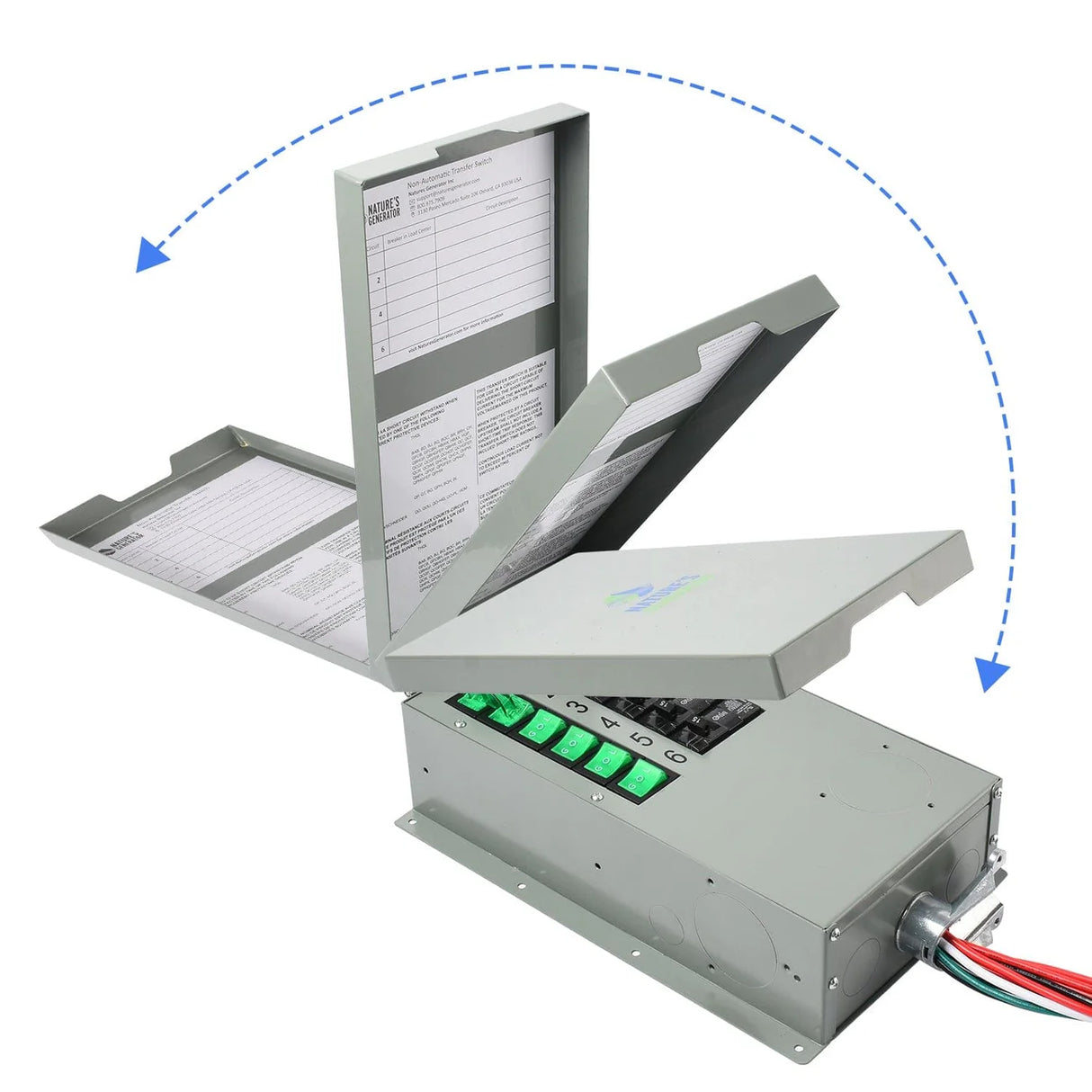

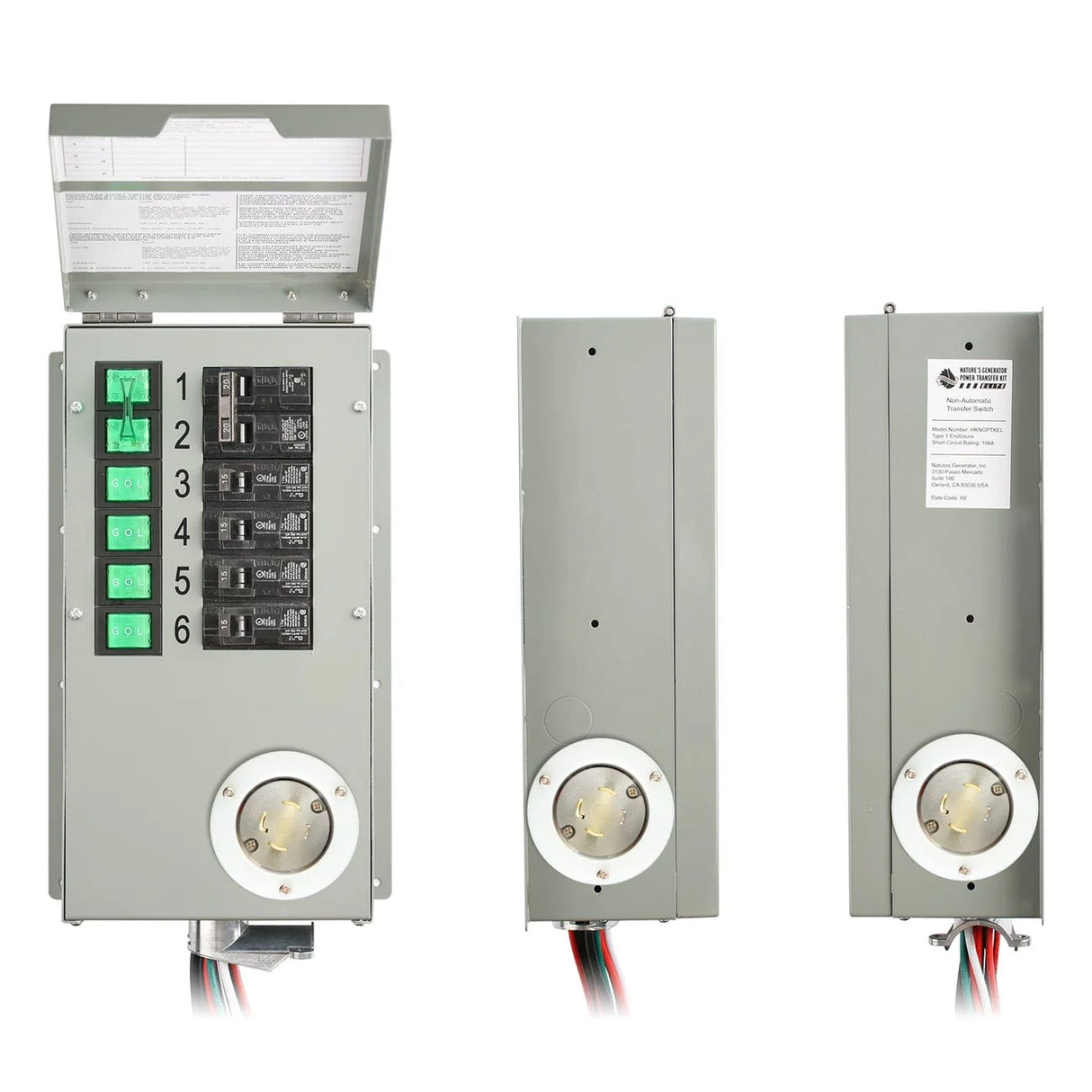

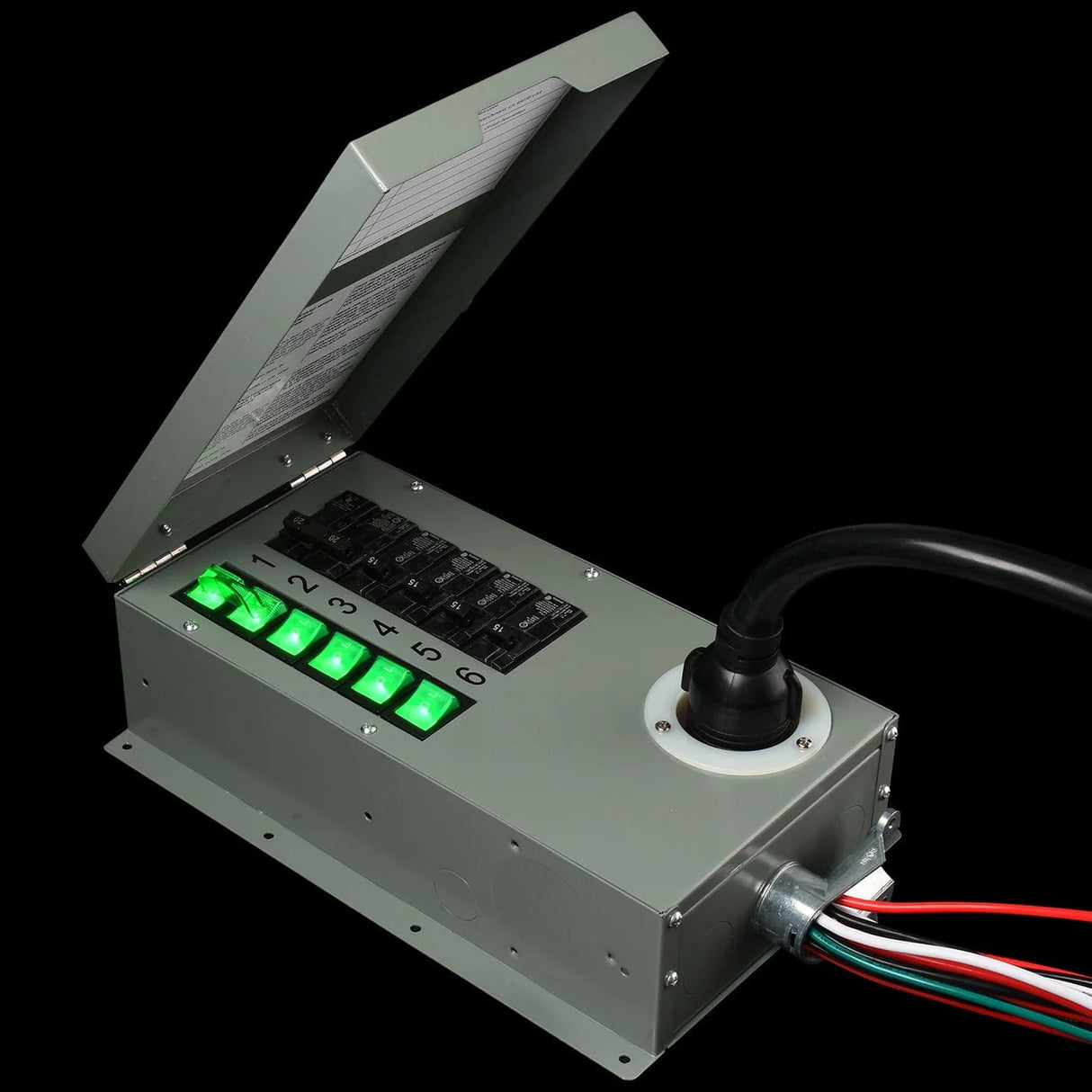

Powerhouse Power Transfer Kit

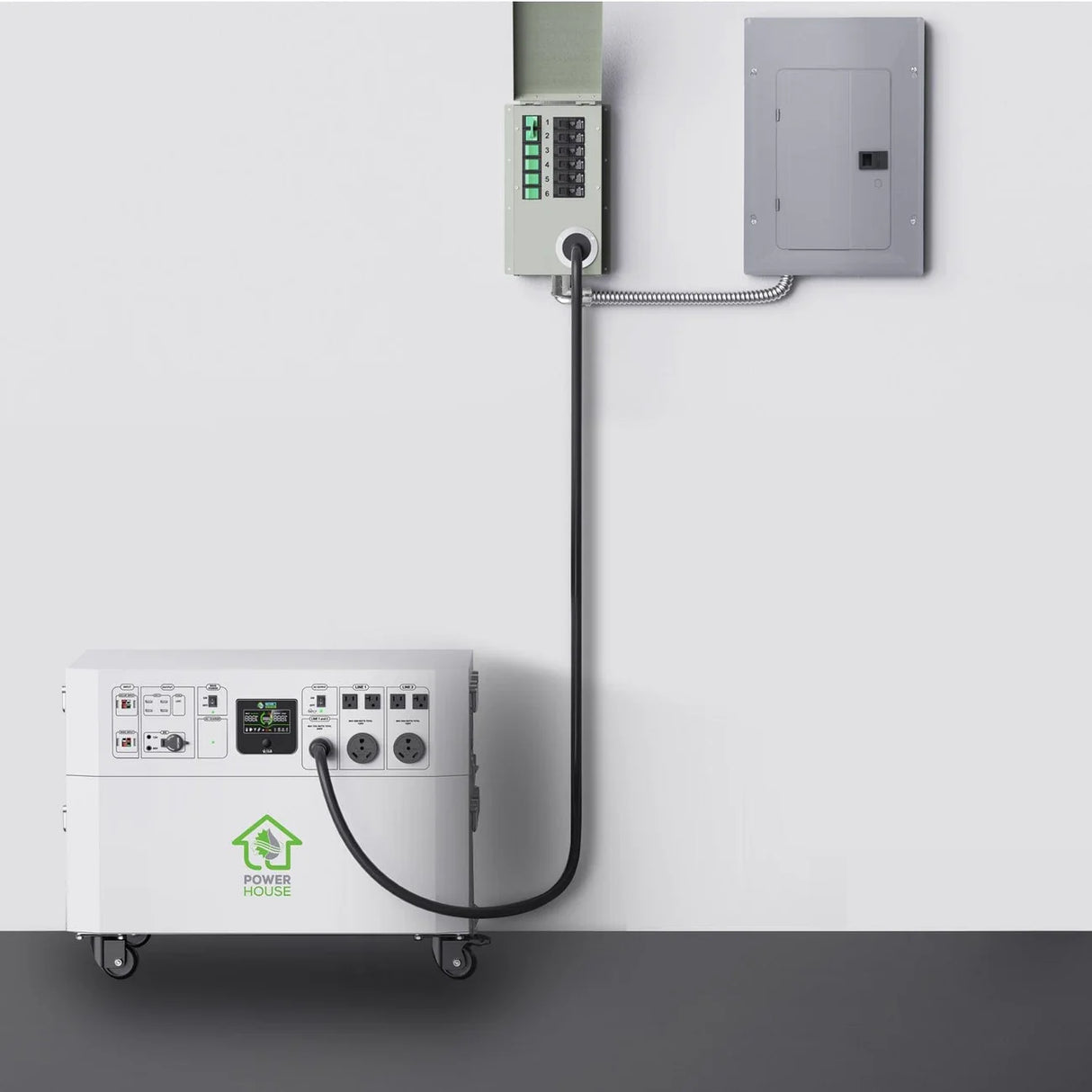

The Power Transfer Kit connects Nature's Generator Powerhouse to your home’s critical loads, powering hardwired devices like water pumps, air conditioners, lights, and refrigerators during outages.

Features:

• Illuminated rocker switch for easy identification of power source.

• Multiple power inlet positions for flexibility.

• Includes a 10-foot 12AWG power cord.

• Requires installation by a qualified electrician.

Specifications & Technical Information

Battery:

• Type: AGM Sealed Lead Acid

• Capacity: 48V 100Ah (4800Wh)

• Recommended recharge: Every 4 months

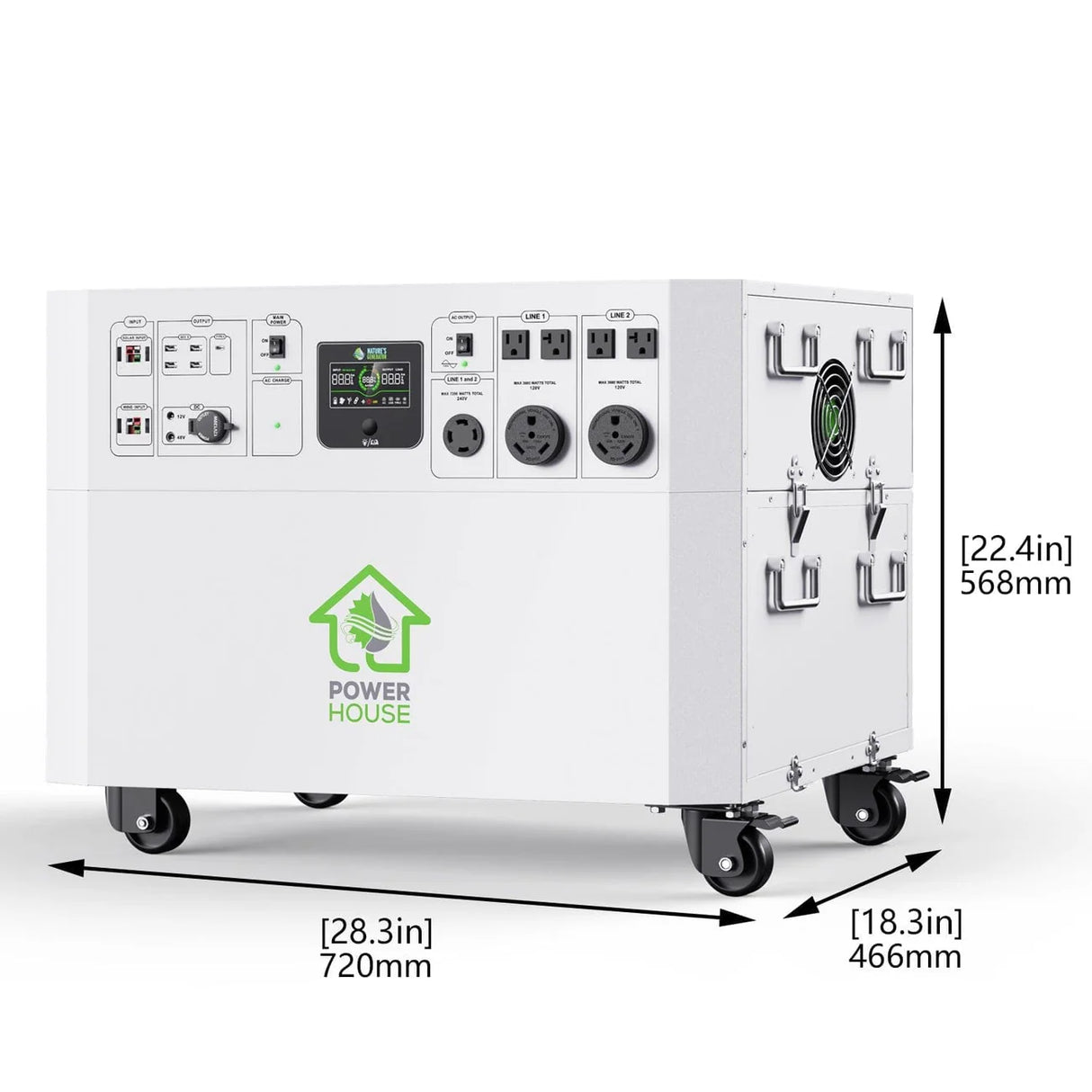

Dimensions:

• Powerhouse: 28 x 18 x 19 inches

• Powerhouse with wheel: 28 x 18 x 22.36 inches

Inverter:

• Max Output: 7200W

• Voltage: 240V Split Phase / 120V Single Phase

• Frequency: 60Hz

• Waveform: Pure Sine Wave

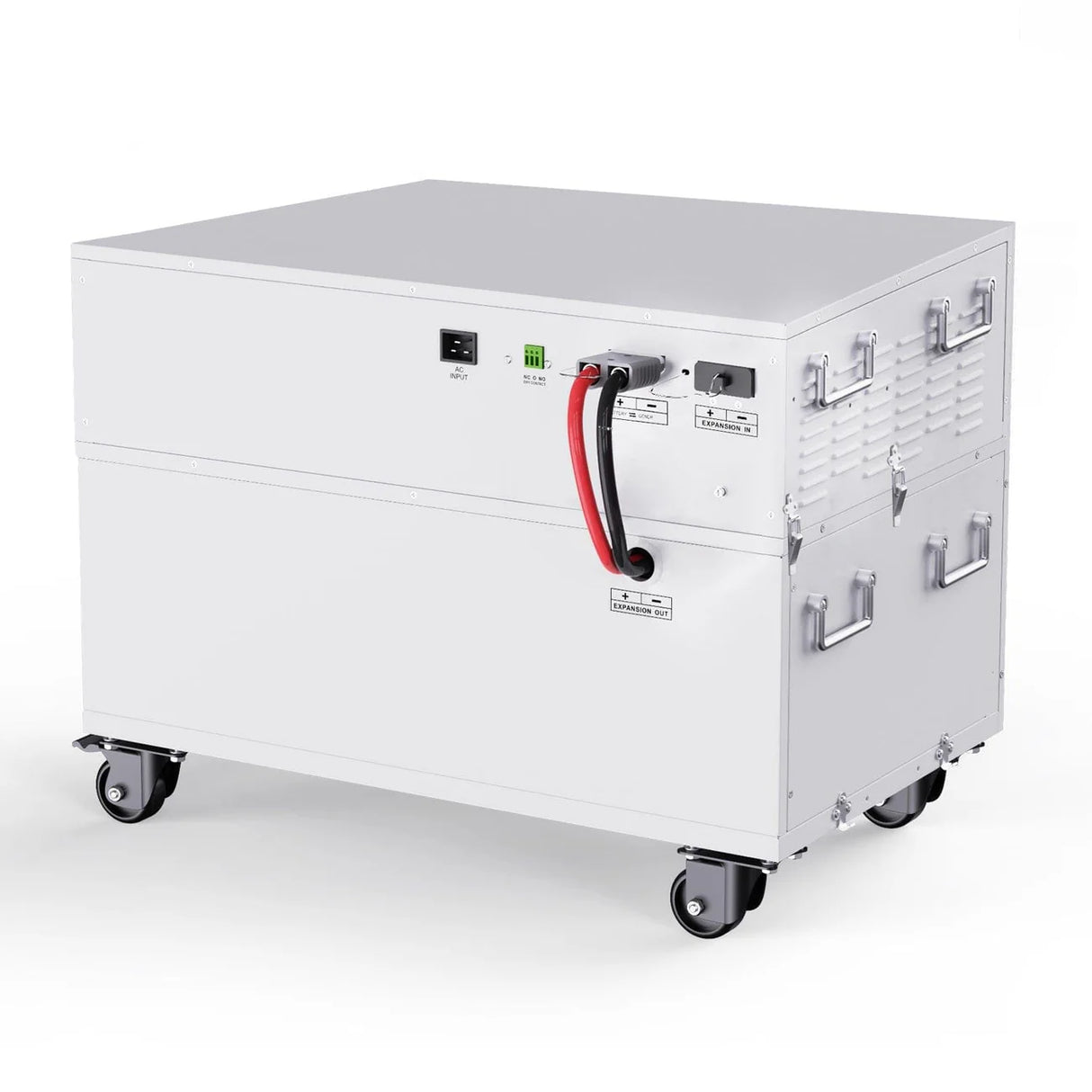

Ports:

• USB-A: 5V, up to 3A (15W)

• 12V DC Port: up to 20A (240W max)

• Expansion Port: 350A fuse

Weight:

• 434 lbs (197 kg)

What’s In The Box

Nature's Generator Powerhouse:

• 1 x Powerhouse Generator

• 1 x Powerhouse Battery Storage

• 1 x AC Power Cord

• User Guide

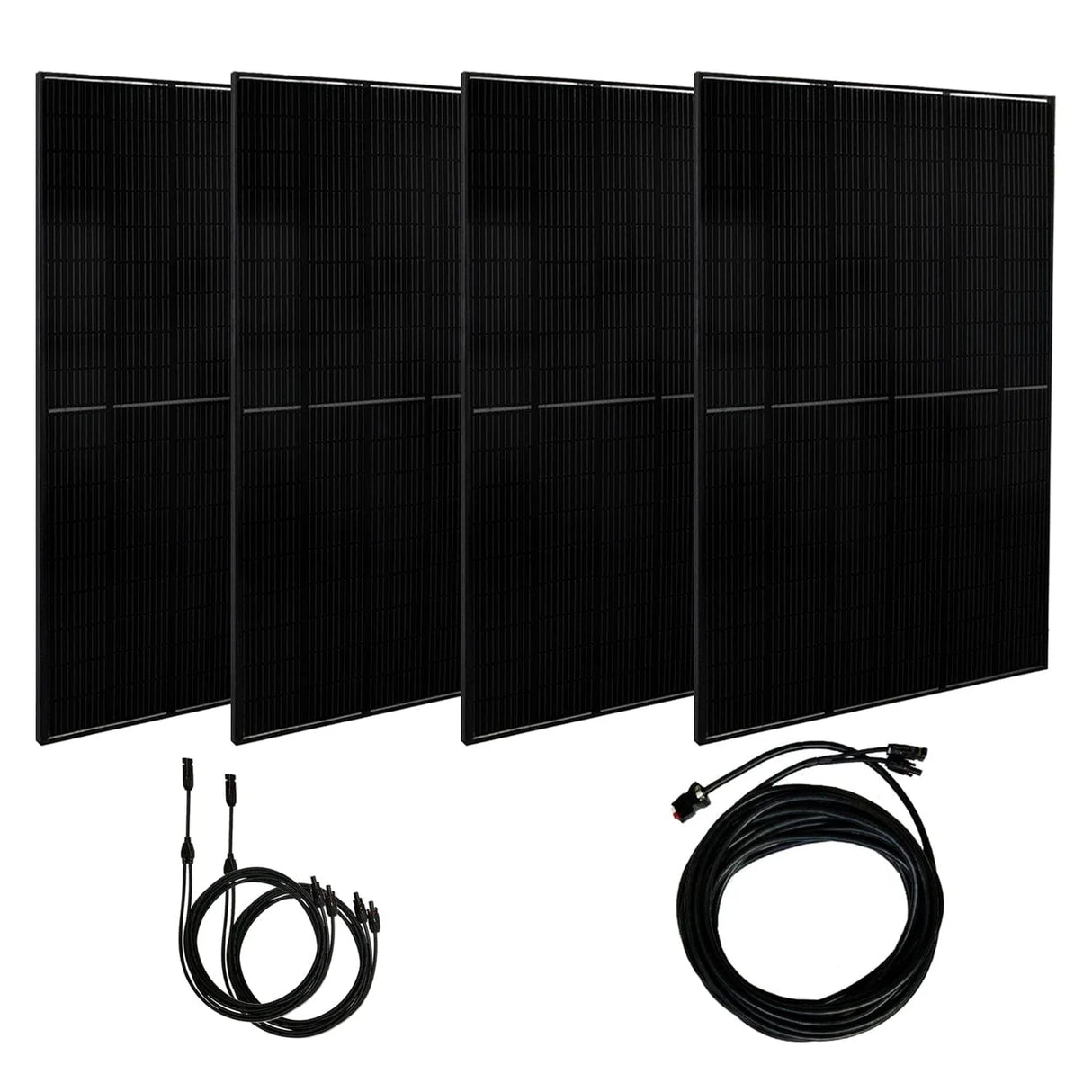

Powerhouse Power Panels:

• 4 x 410W Power Panels

• 1 x Branch Connector

• 1 x 50ft Power Panel Cable

• Installation Guide

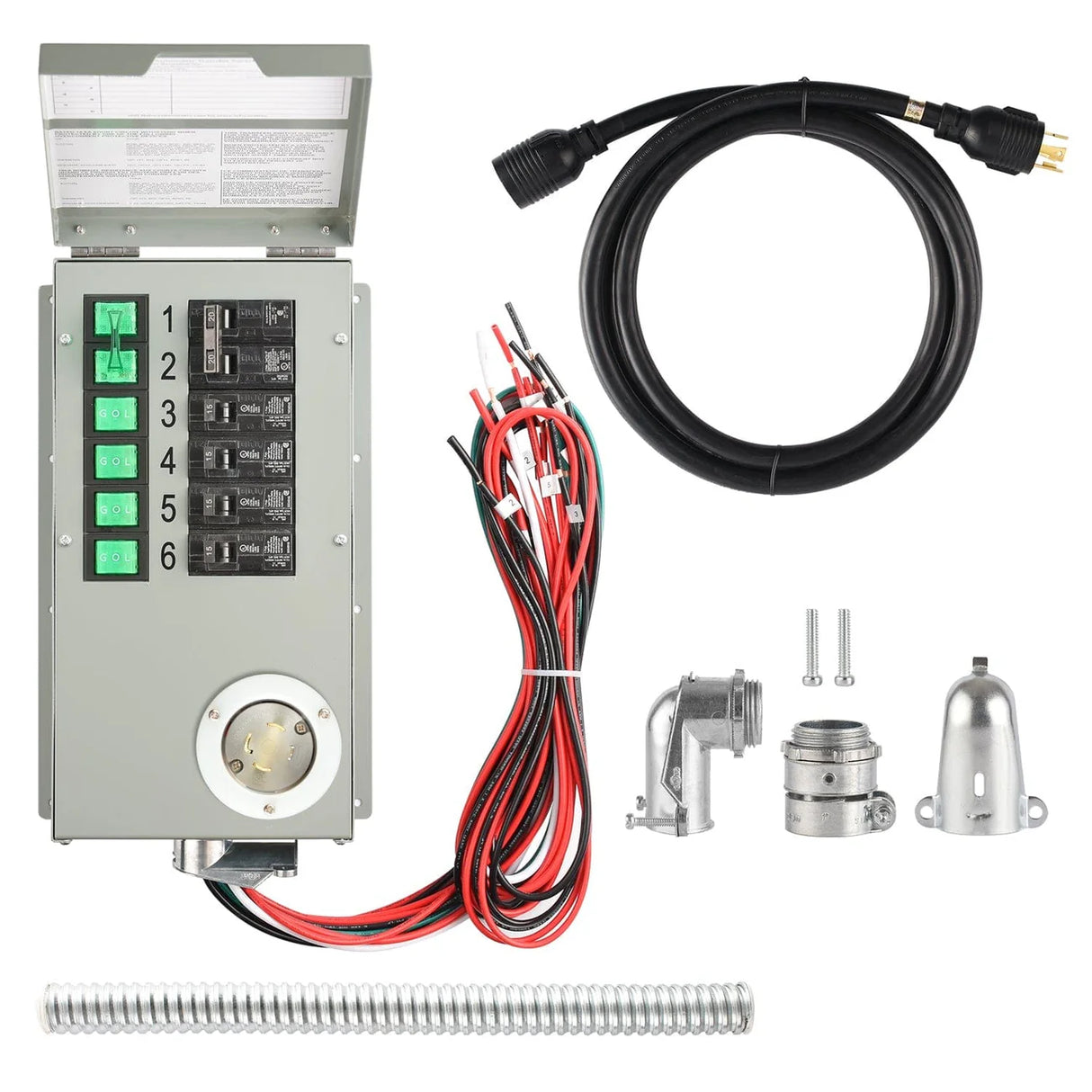

Power Transfer Kit:

• 1 x Power Transfer Kit

• 1 x Conduit for Power Transfer Kit

• 1 x Cable Clamps

• 10ft 12AWG Power Cord

• User Guide

Important: Installation of the Power Transfer Kit must be done by a qualified electrician in compliance with all applicable codes.

Consult a tax professional to determine eligibility for the Federal Solar Tax Credit.
