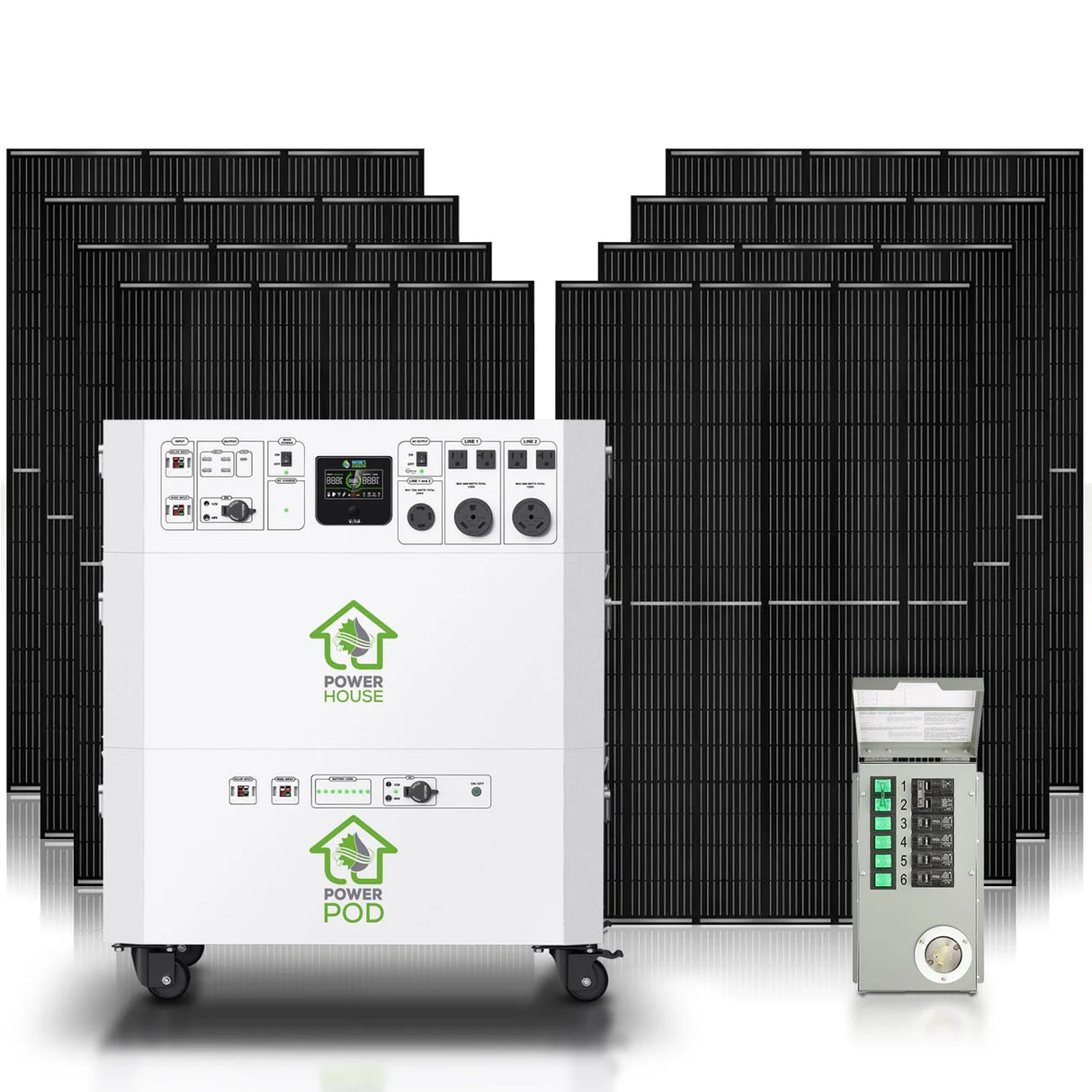

Nature's Generator Powerhouse Platinum Plus PE System

Get To Know The Nature's Generator Powerhouse

Nature's Generator Powerhouse is designed to address all your home power needs with its split phase 240V/7200W or single phase 120V/7200W (combined) pure sine wave inverter.

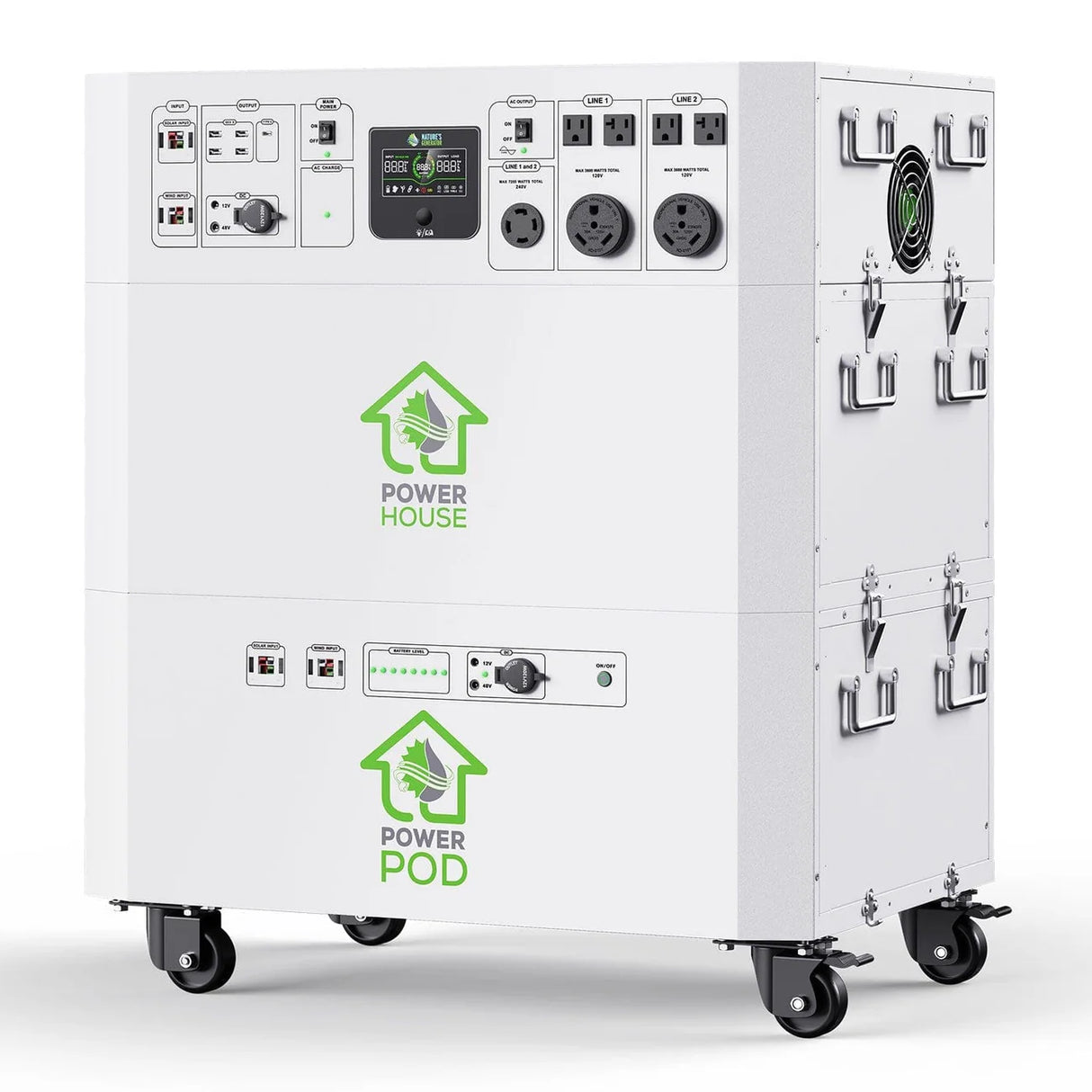

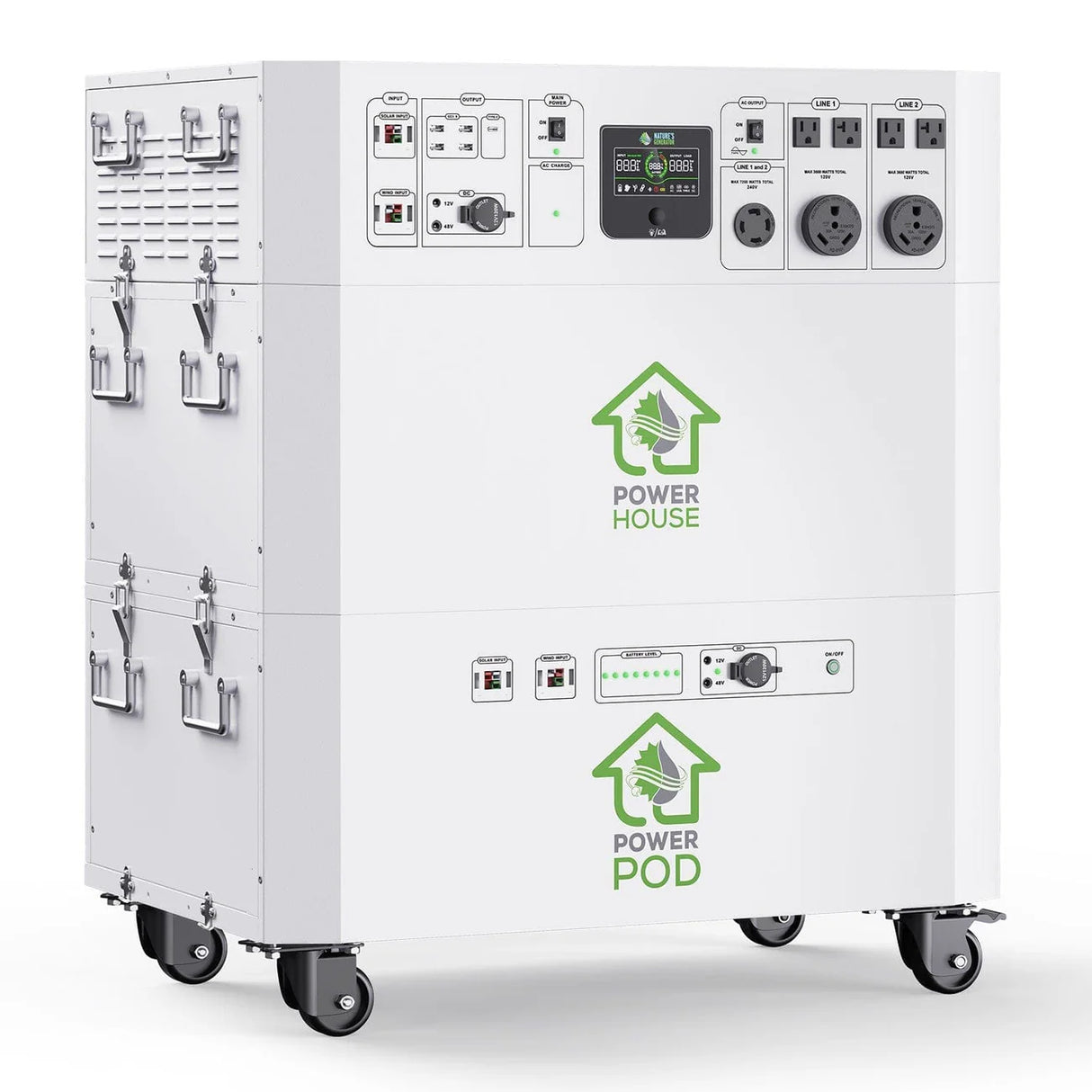

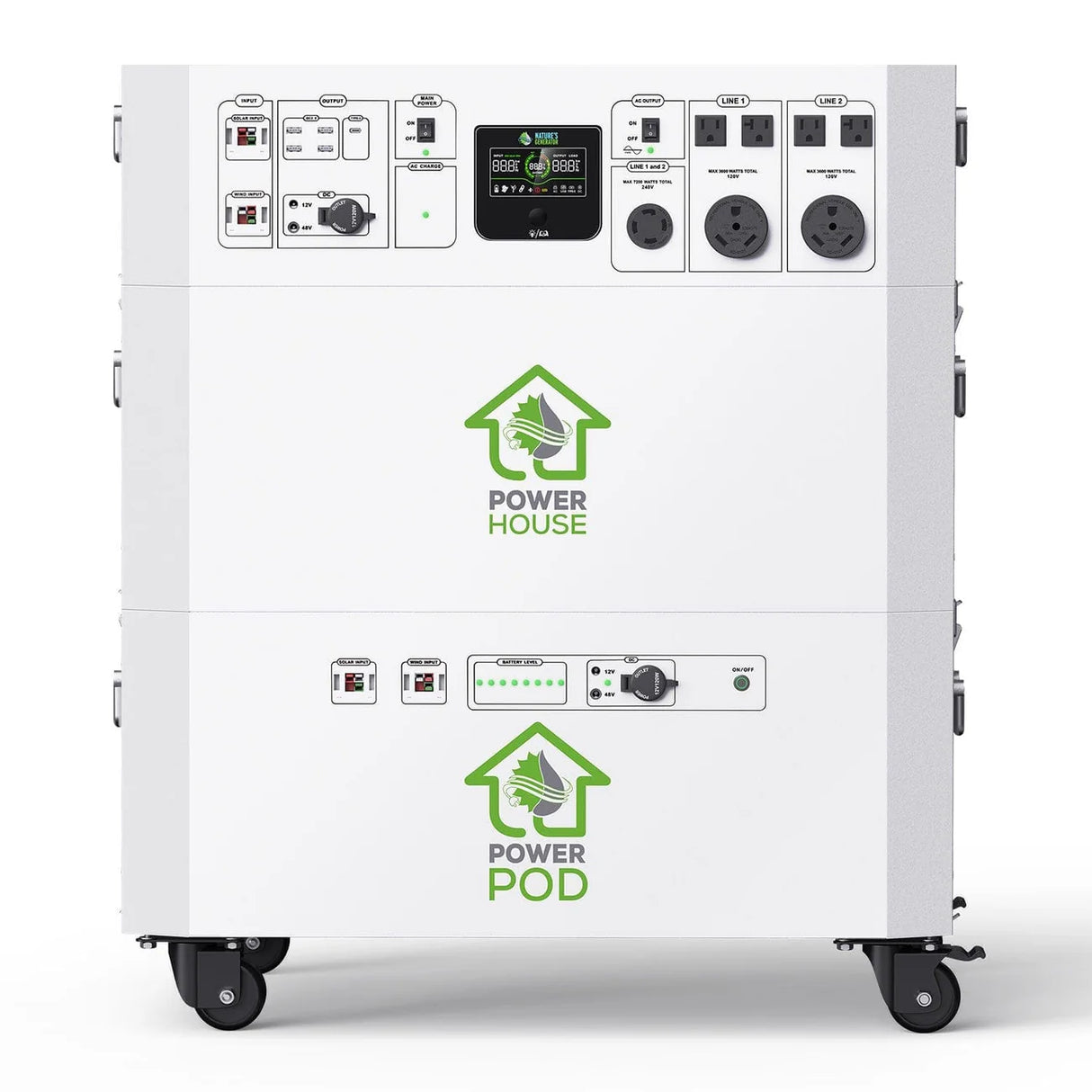

Powerhouse Front Panel Plugs

240V 7200W Pure Sine Wave

Nature's Generator Powerhouse delivers 240V power for critical devices like water pumps, air conditioners, and heaters, ensuring uninterrupted performance when you need it most.

120V 3600W Pure Sine Wave Line 1

With a 120V 3600W capacity, Line 1 supports sensitive devices like refrigerators, garage door openers, and computers, functioning independently of Line 2.

120V 3600W Pure Sine Wave Line 2

Maximized Line 1? No problem! Line 2 offers an additional 3600W capacity, allowing more devices to stay powered.

Your All-in-One Expandable Home Power Eco-System

Nature's Generator Powerhouse is customizable with expandable options, including solar panels, wind turbines, power pods, transfer switches, and even security camera systems, letting you create the perfect eco-friendly setup.

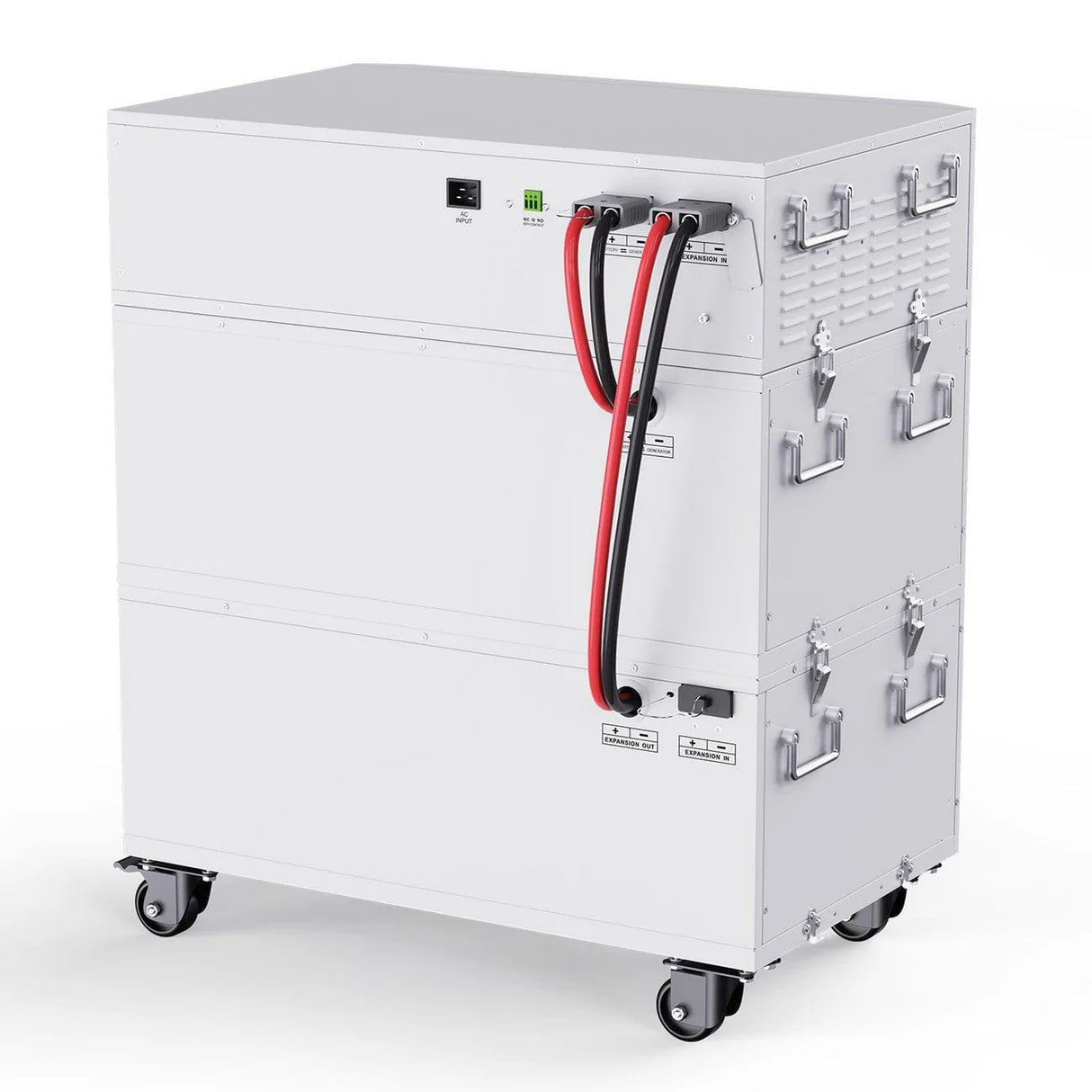

Powerhouse Power Pod

Expand your battery capacity and renewable energy inputs with the Nature's Generator Powerhouse Power Pod.

• Capacity Expansion: Add 4800Wh per pod, with unlimited expansion capability.
• Solar and Wind Input Upgrade: Gain 2000W solar and 1000W wind input per pod.
• Ease of Upgrade: Plug-and-play design; no professional installation required.

Technical Specifications

AC Output

• 2 x 3600W 120 Volt
• 1 x 7200W 240 Volt

DC Output

• 4 x USB Type A
• 1 x USB Type C
• 1 x 12V DC Port (expandable up to 4 ports)
• 1 x 48V Output (expandable up to 4 outputs)

Battery

• Type: AGM Sealed Lead Acid
• Capacity: 48V 100Ah (4800Wh)
• Expandable: Unlimited with Power Pods

Charging Input

• AC Wall Outlet: 1300W
• Solar Input: Expandable up to 8000W
• Wind Input: Expandable up to 4000W

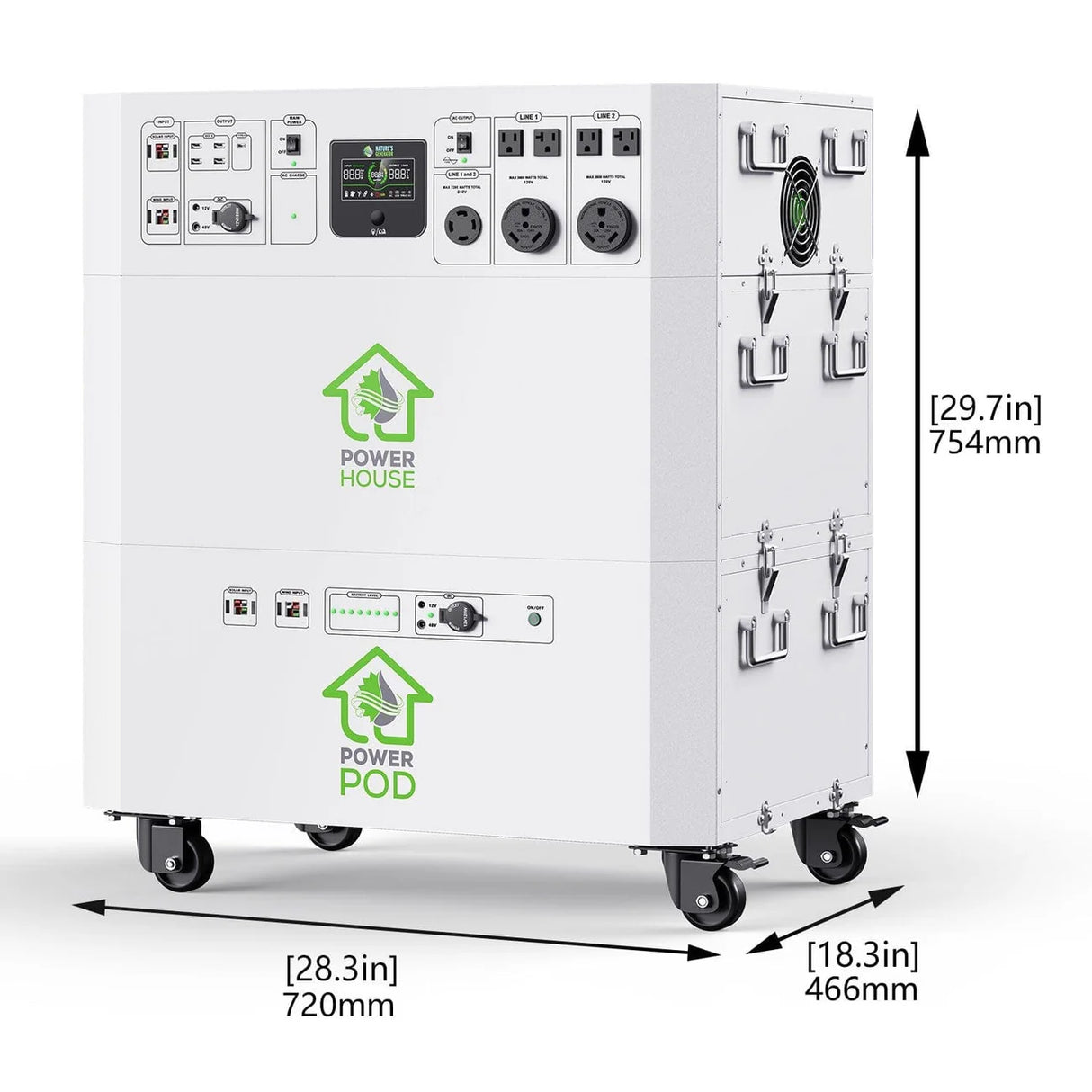

Dimensions

• Powerhouse: 28 x 18 x 19 inches
• With wheels: 28 x 18 x 22.36 inches

Weight

• 434 lbs (197 kg)

Operating Temperature

• 32-104 °F (0-40 °C)

Storage Temperature

• 23-111 °F (-5-45 °C)

What Can the Powerhouse Power?

Nature's Generator Powerhouse (4800Wh)

• LED TV (60W): 80+ hours
• Blender (400W): 12+ hours
• 220V Well Pump (2HP): 3+ hours
• Smartphone: 400+ recharges
• Refrigerator: 50-80 hours

With Power Pod (9600Wh)

• LED TV: 160+ hours
• Blender: 24+ hours
• Refrigerator: 100-160 hours
• Smartphone: 800+ recharges

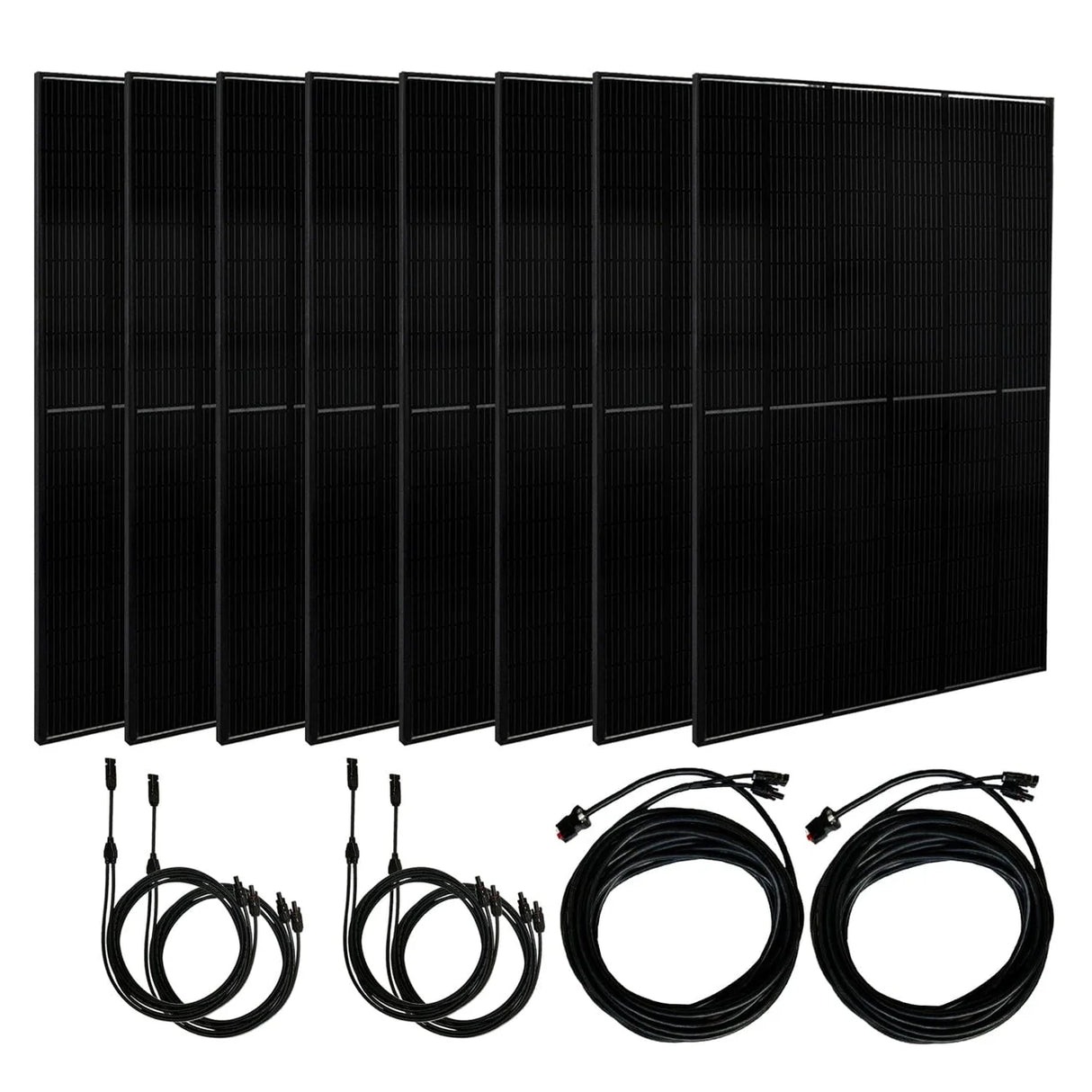

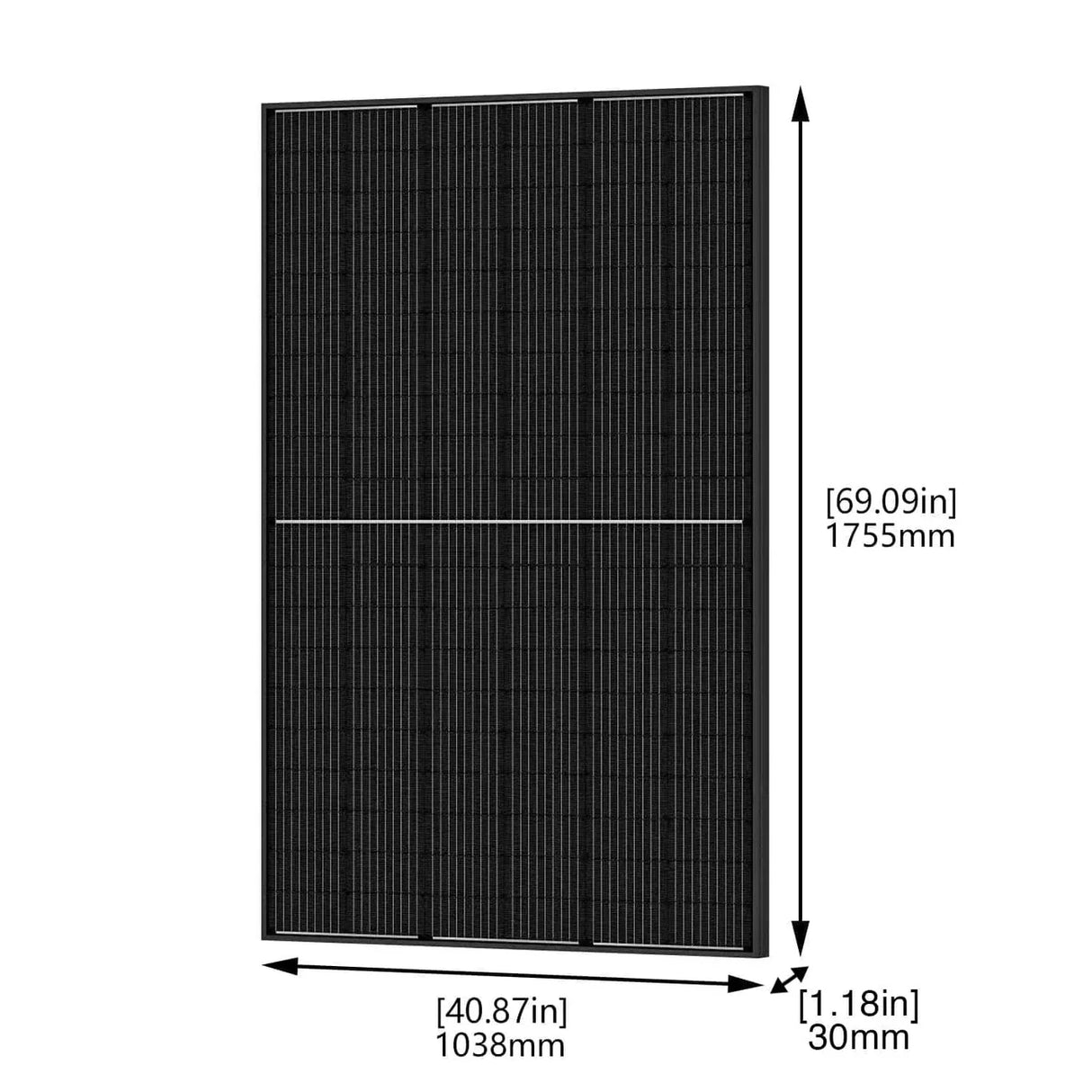

Nature's Generator Powerhouse Power Panel

Design

• Luxurious all-black frame and mono PERC solar cell technology for improved efficiency and aesthetics.

Efficiency

• High conversion efficiency (up to 20.38%) with excellent low-light performance.

Durability

• Certified for wind load (2400 Pascal) and snow load (5400 Pascal) with high salt mist and ammonia resistance.

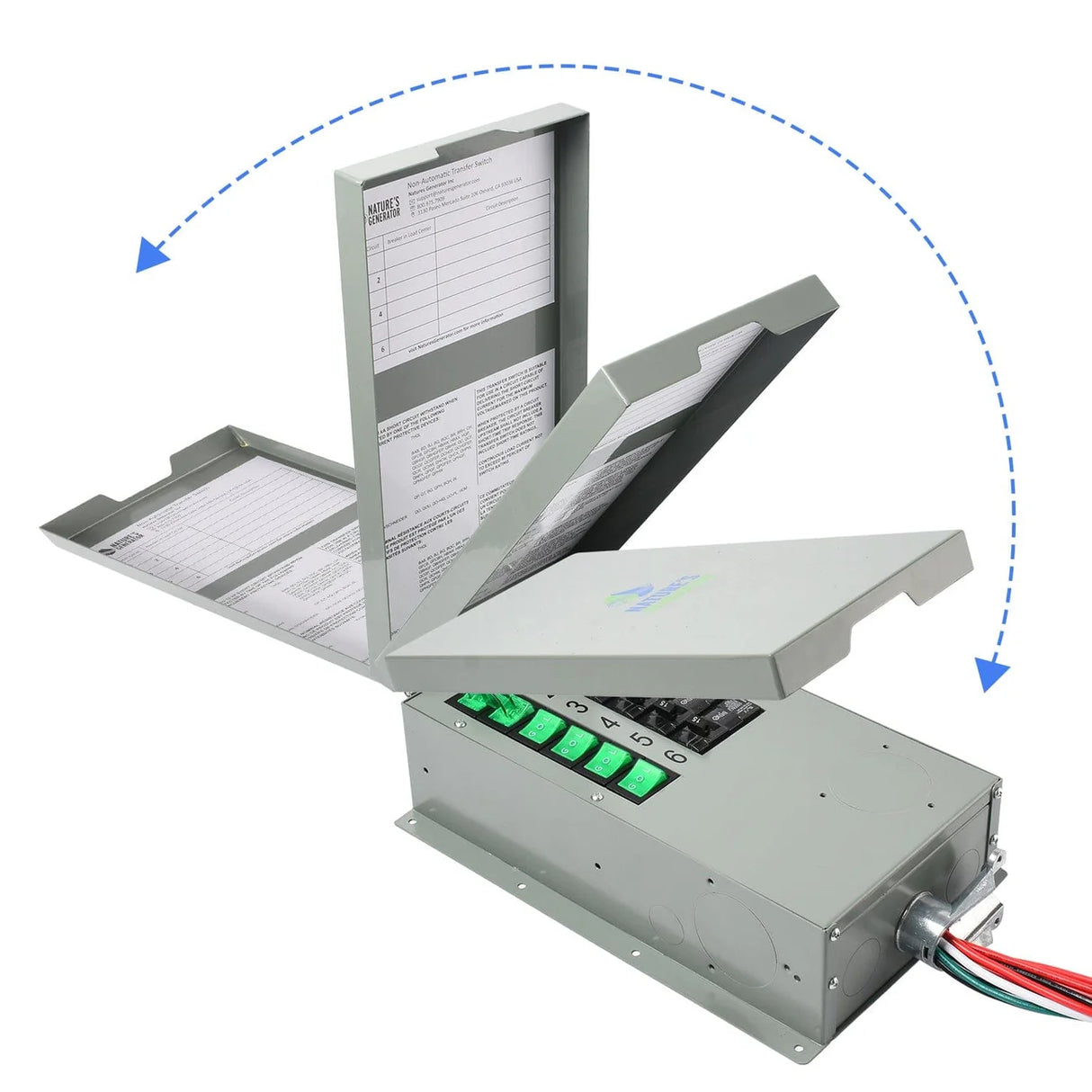

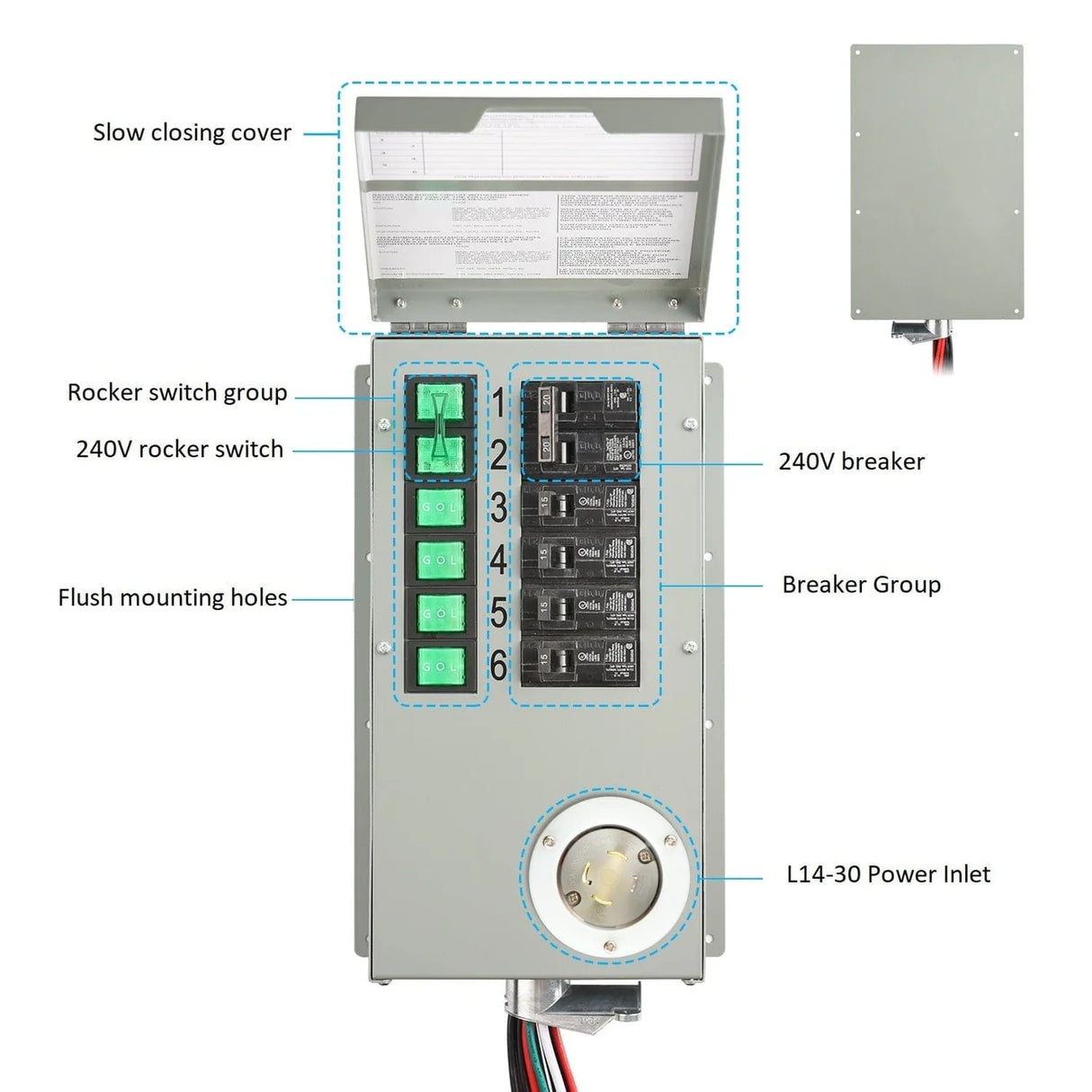

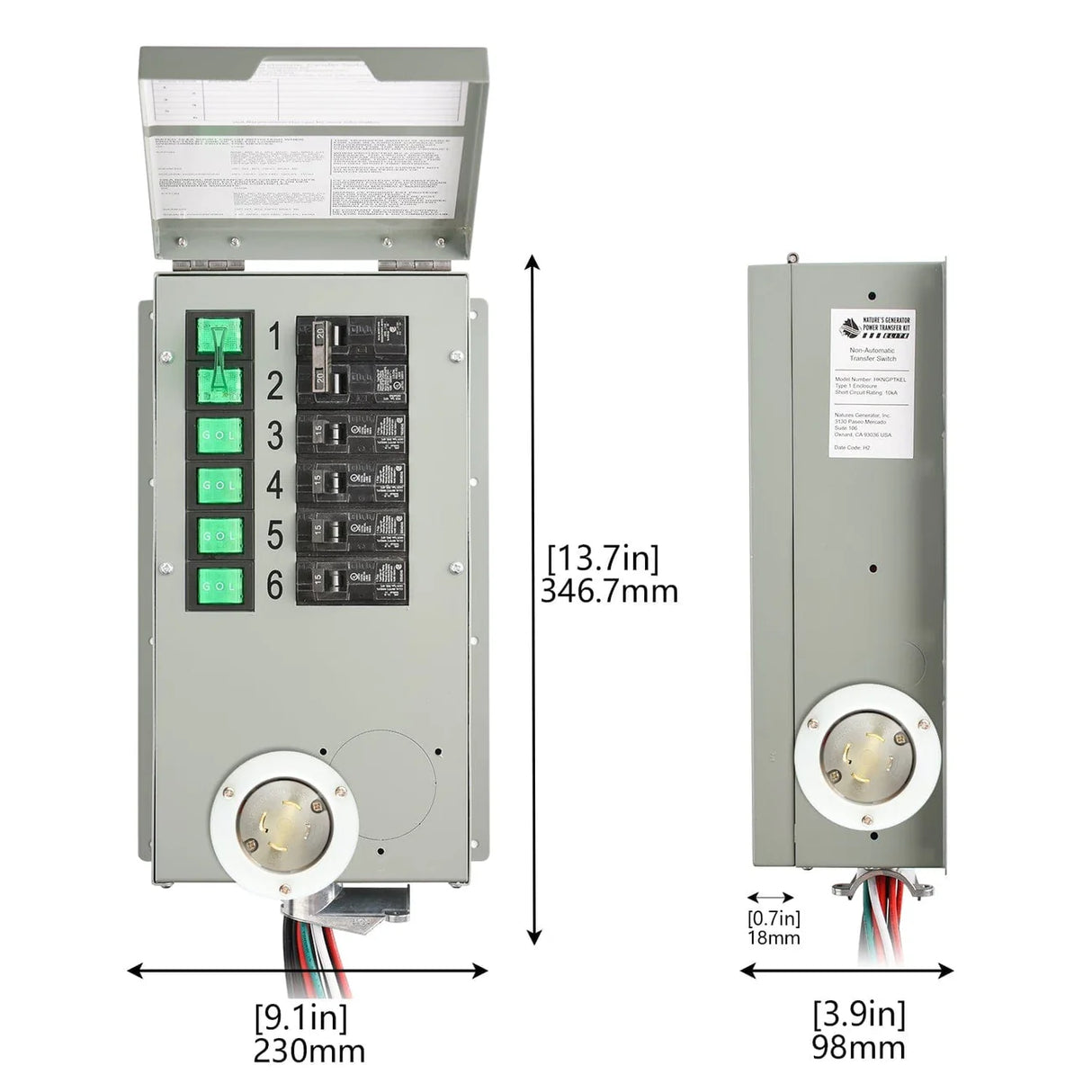

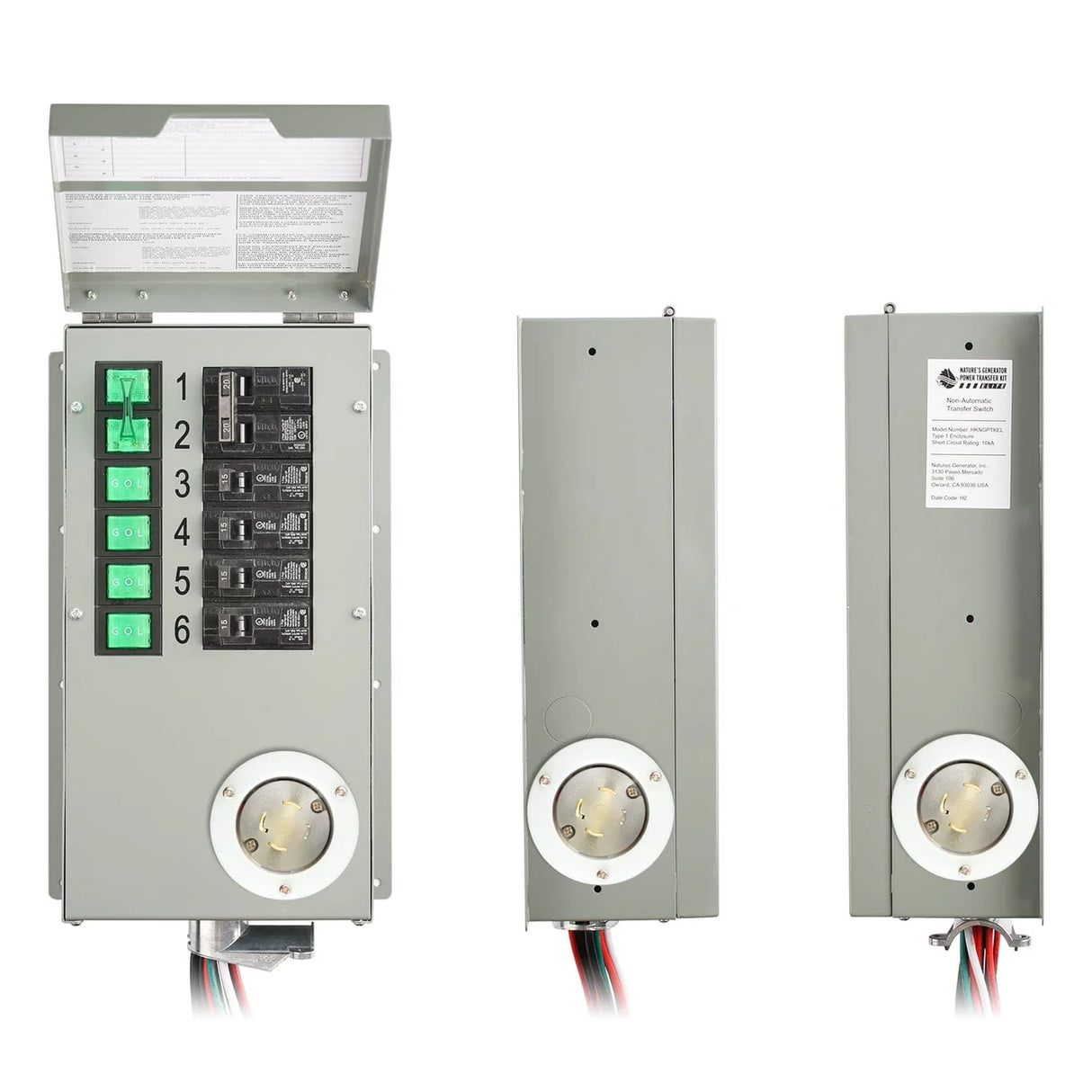

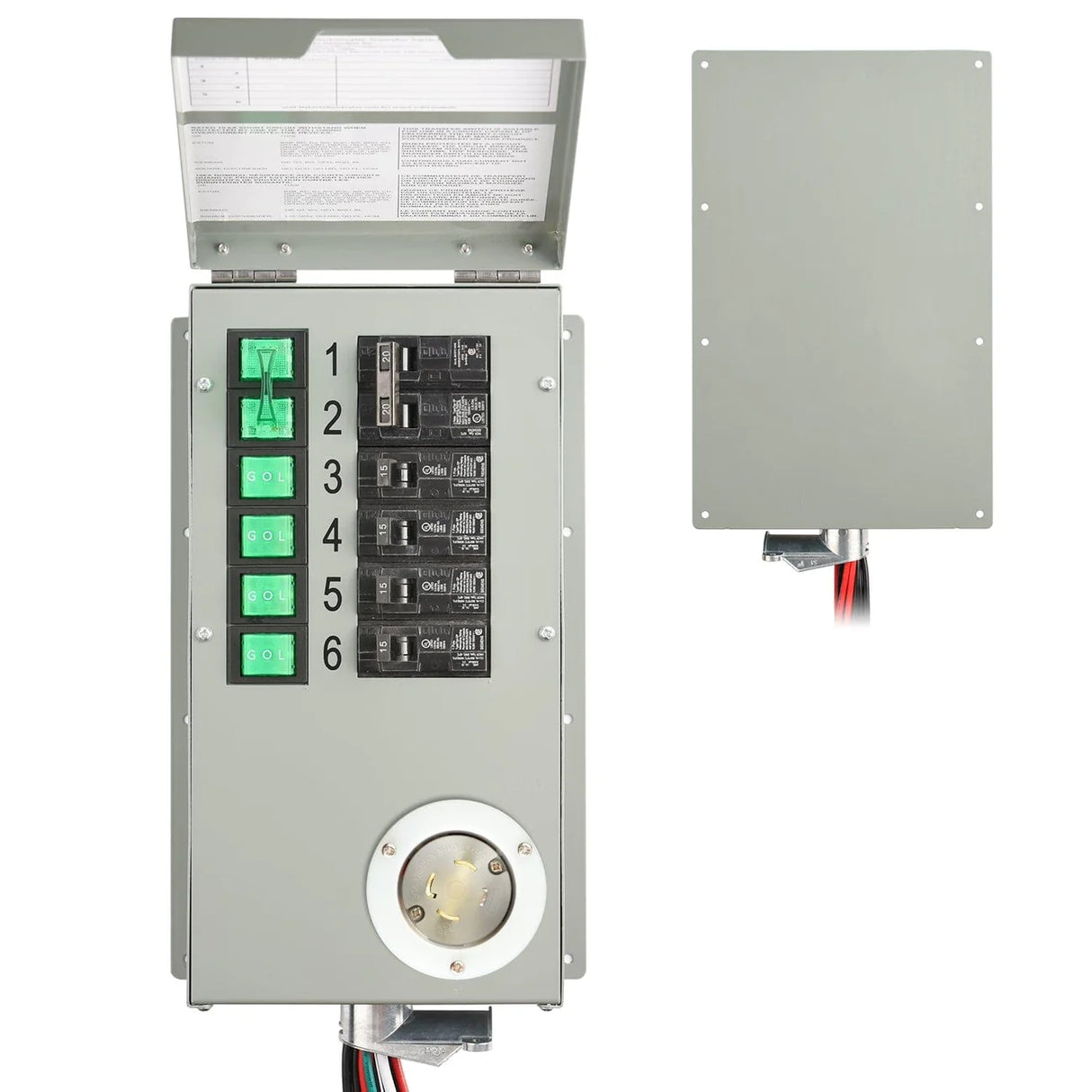

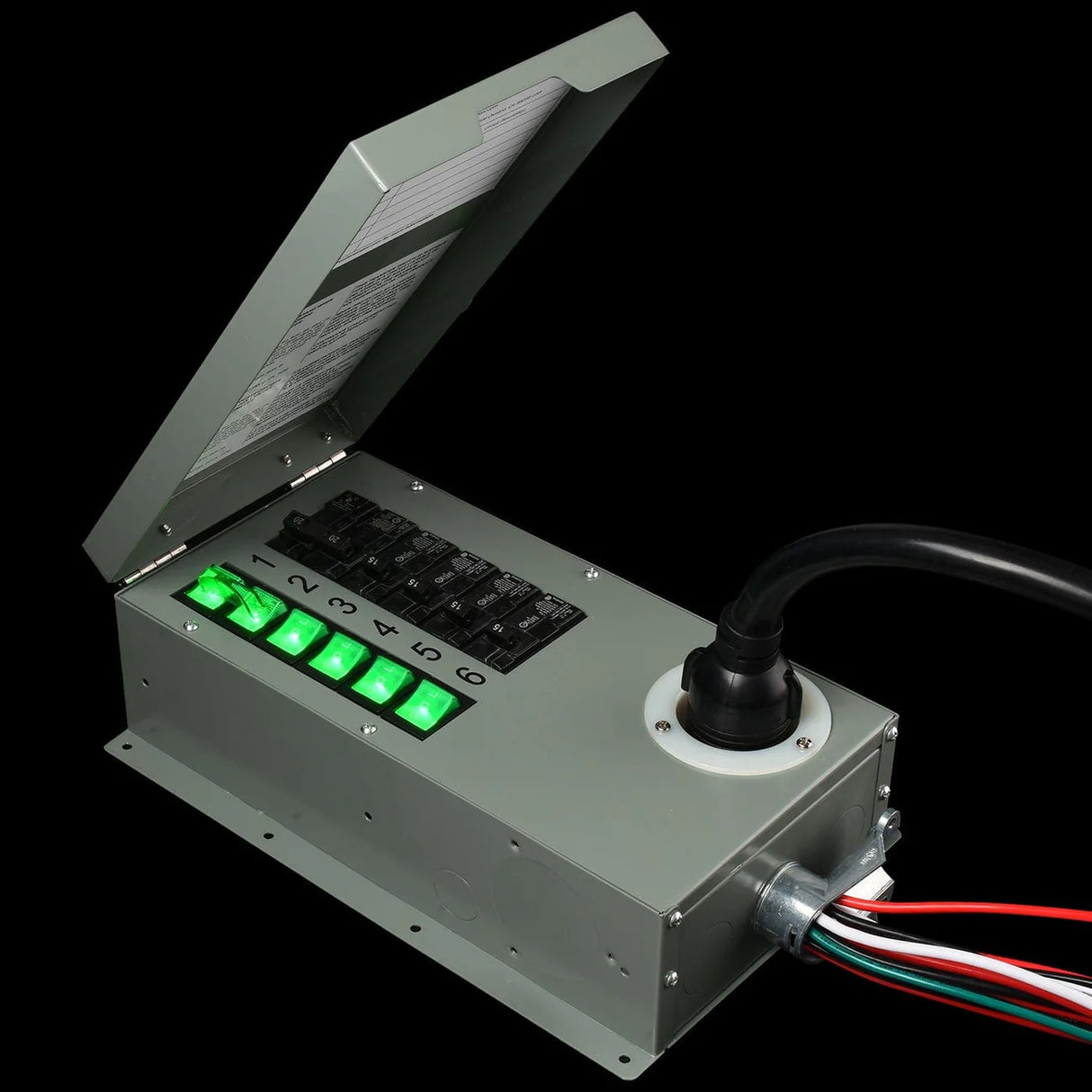

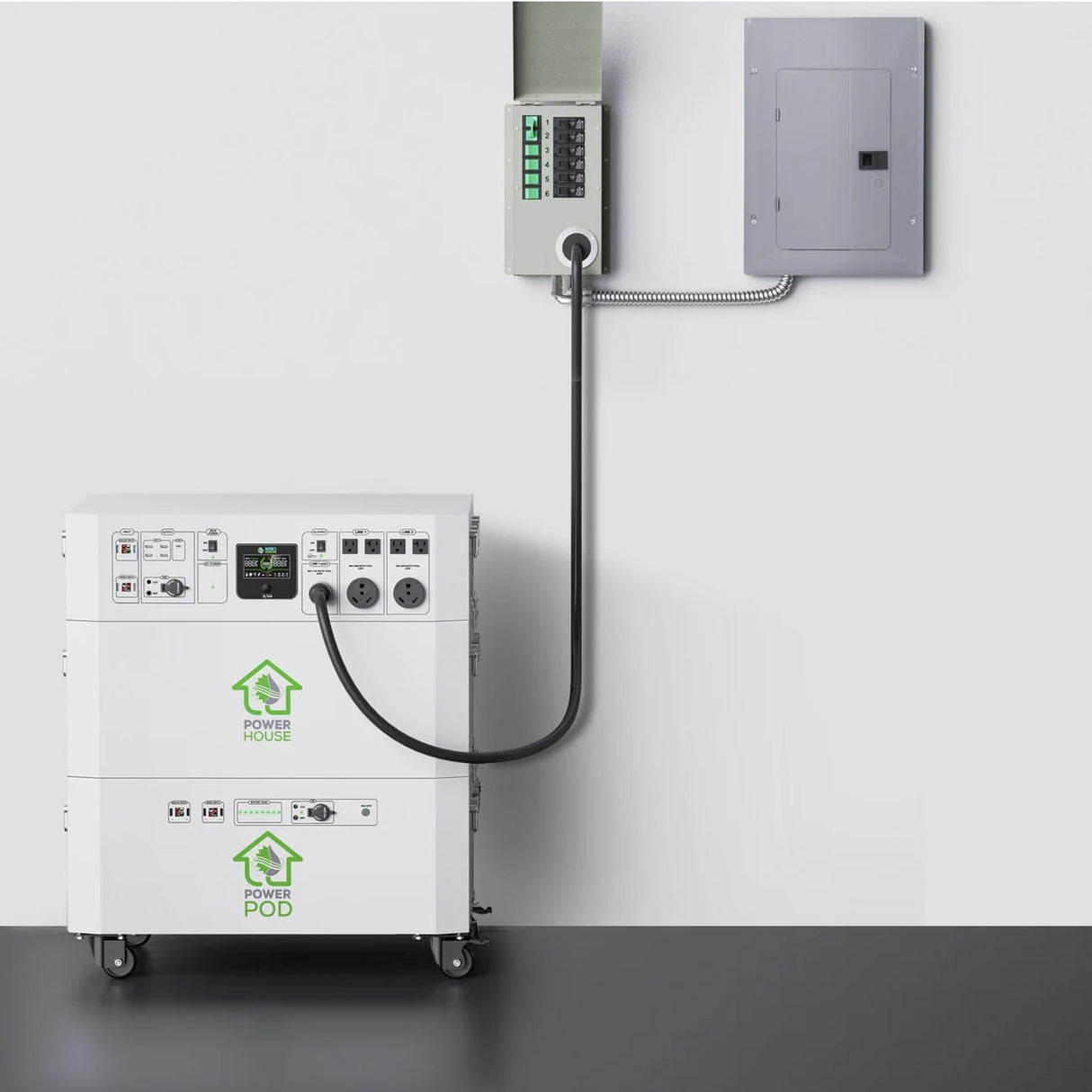

Powerhouse Power Transfer Kit

Home Integration

• Backup critical home loads like water pumps and air conditioners without moving appliances.
• Includes a rocker switch with indicator lights for source selection.

Specifications

• Multiple inlet positions for flexibility.
• Includes a 10-foot 10AWG power cord.

What's in the Box

Nature's Generator Powerhouse

• Powerhouse Generator
• Battery Storage
• AC Power Cord
• User Guide

Powerhouse Power Pod

• Power Pod
• User Guide

Powerhouse Power Panels

• 8 x Power Panels
• 2 x Branch Connectors
• 2 x 50ft Power Panel Cables
• Installation Guide

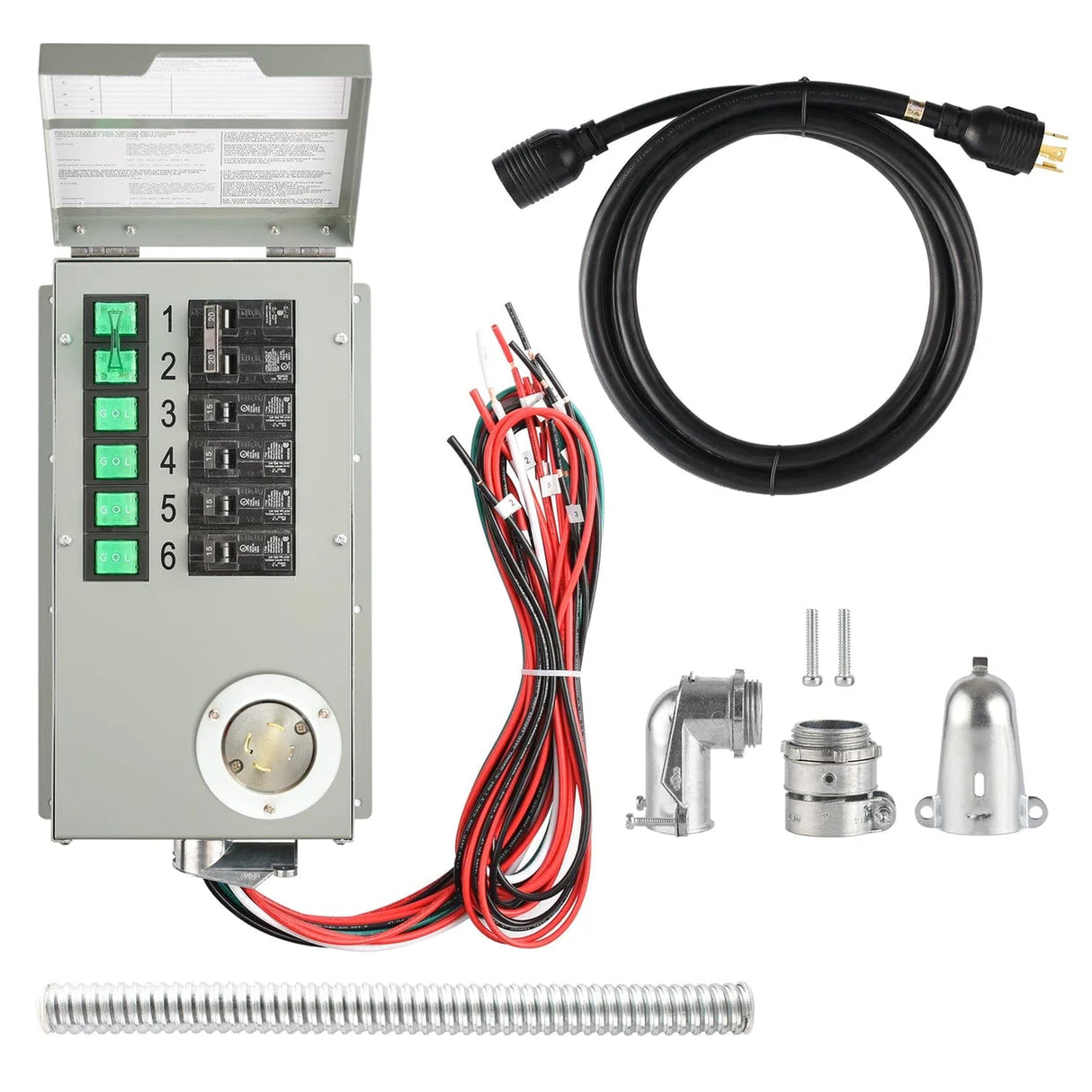

Powerhouse Power Transfer Kit

• Transfer Kit
• Conduit and cable clamps
• 10-foot 10AWG Power Cord
• User Guide

Note: Installation of the Power Transfer Kit must be performed by a qualified electrician in compliance with electrical codes. Consult a tax professional regarding eligibility for federal solar tax credits.
