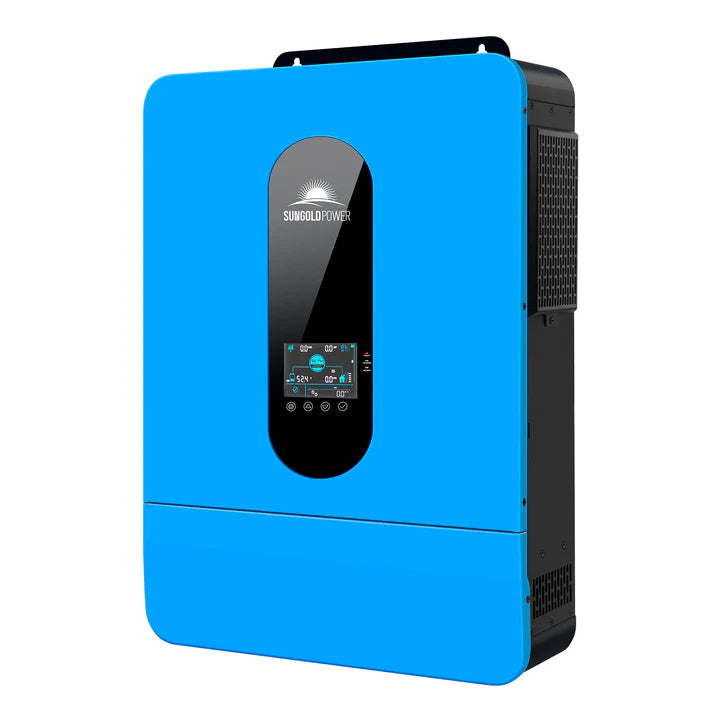

SUNGOLD POWER 6.5KW 48V Split Phase Solar Inverter SPH6548P

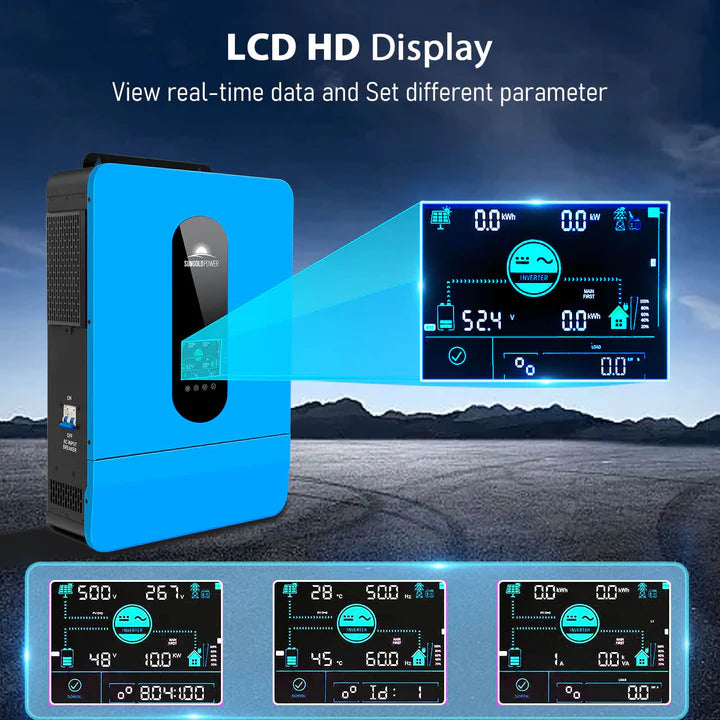

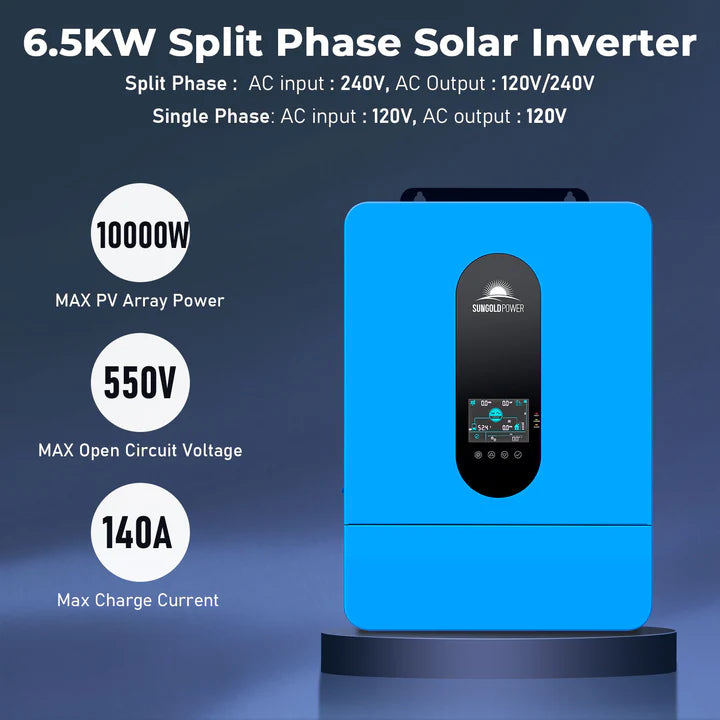

All-in-One Unit: The 6.5KW Pure Sine Wave Solar Inverter comes with up to 140A battery charging, two built-in MPPT solar controllers, and a maximum open circuit voltage of 550VDC. It provides split-phase (120V/240V) or single-phase (120V) output. A Wi-Fi module is included, allowing users to monitor the inverter's operating status and parameters via a mobile app.

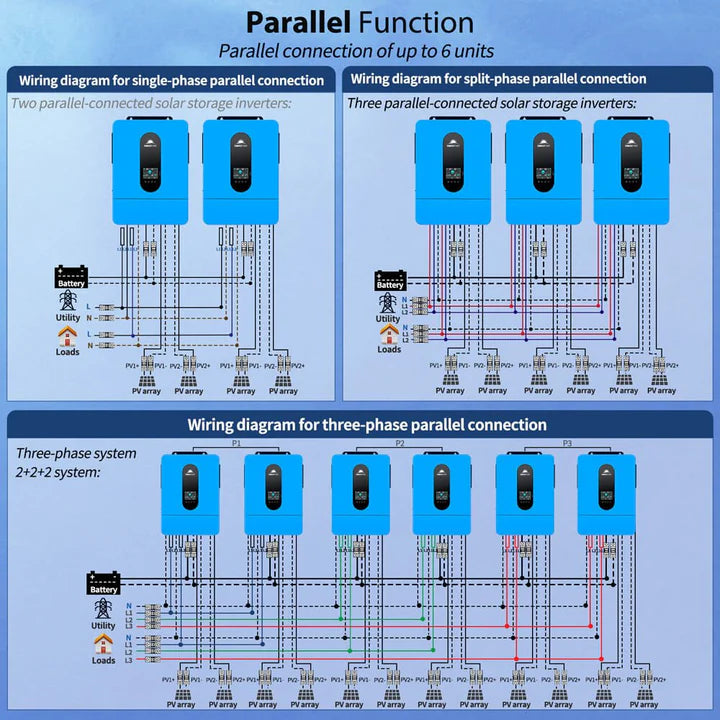

Parallel Kit: This inverter can be expanded by connecting up to 6 units in parallel for a total output of 39kW. It supports 120V single-phase, 120V/240V split-phase, or 208V three-phase configurations (with more than 3 units in parallel), boosting both power and surge capacity.

Stable AC Output & Smart Protection: With a rated output power of 6,500W and a peak power of 13,000VA, this inverter is designed to handle various household and office loads. It includes protection features for PV input over-voltage/current, AC input over-voltage, battery over-voltage, overload, and more, ensuring safe and reliable performance.

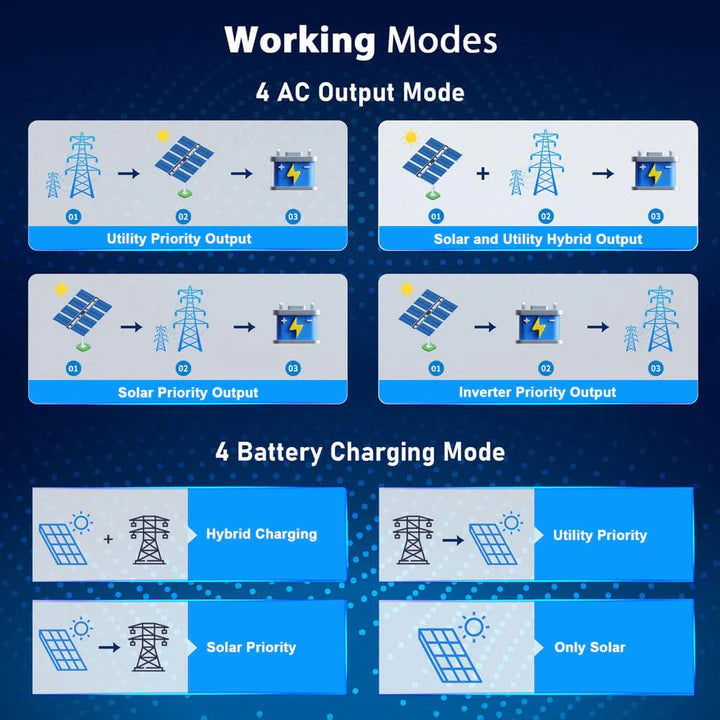

Four Charging / Output Modes: The inverter offers four charging modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Only Solar Charging. Additionally, it provides four output modes: Utility Priority, Solar and Utility Hybrid, Solar Priority, and Inverter Priority, giving users flexibility to choose the most suitable option.

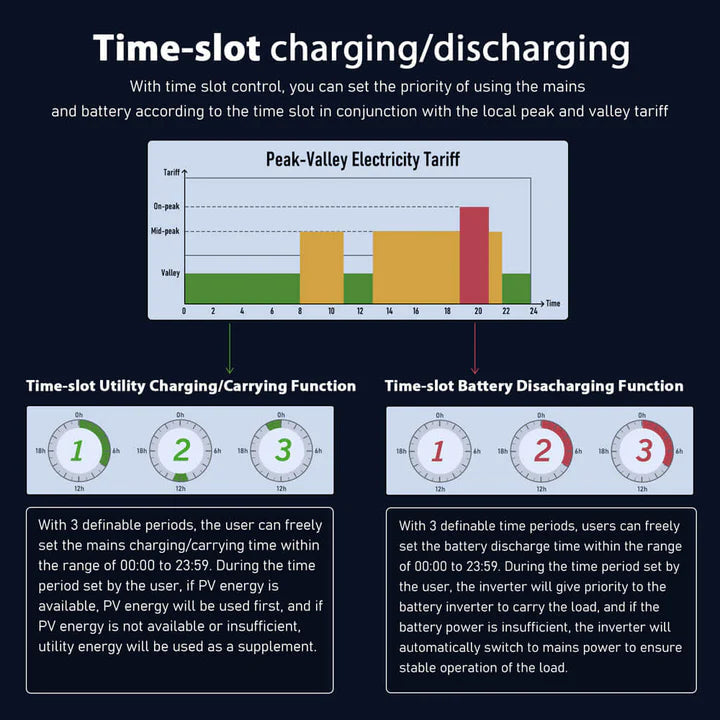

Time-Slot Charging/Discharging Function: The SPH series 6500W inverter includes a time-slot charging and discharging feature, allowing users to set charging and discharging periods based on local peak and valley electricity tariffs. This optimizes the use of utility power and solar energy.

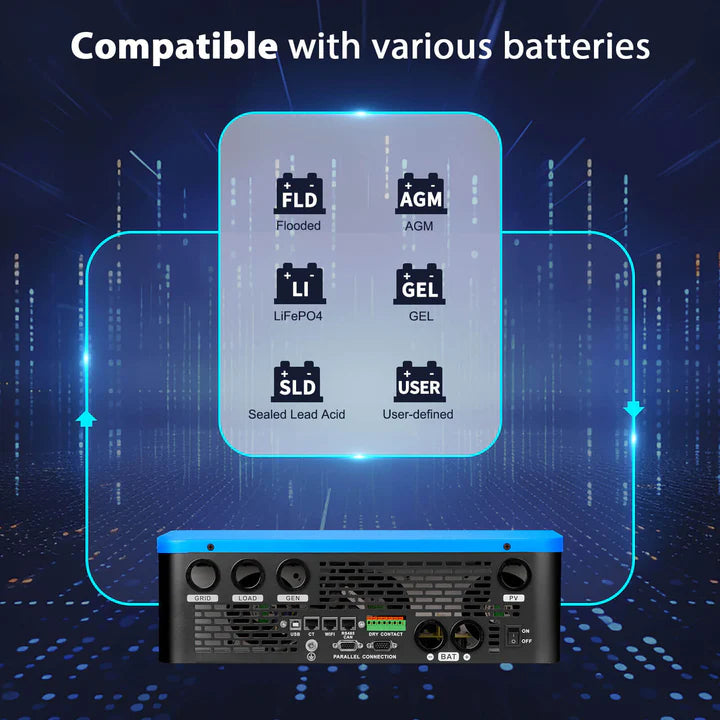

Battery Compatibility: The inverter supports 48V AGM/Sealed, Gel, Flooded, and Lithium batteries, and features a user mode for custom settings, making it compatible with virtually all battery types. It also supports battery-free operation, where mains power and photovoltaics can activate dormant lithium batteries. The 48V split-phase inverter is compatible with SunGoldPower batteries and supports CAN and RS485 communication.
